| Electrical specifications
| Model |
RAO-2ALT-120
|
| Operating frequency band, MHz |
280-380
|
| VSWR, not more than |
1,5
|
| Gain,dBi |
8
|
| Sector in vertical plane , -3dB |
40°
|
| Sector in horizontal plane , -3dB |
120°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
500
|
| Polarization |
vertical
|
Mechanical specifications
| Model |
RAO-2T-120
|
| Weight not more than , kg |
7.8
|
| Radiating unit construction material |
aluminum
|
| Radome material |
ABS
|
| Radome color |
grey
|
| Standard mounting |
to a 45-60 mm dia. tube
|
| Rated wind velocity, m/s |
40
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Dimensions, mm |
400х260х1140
|
| |

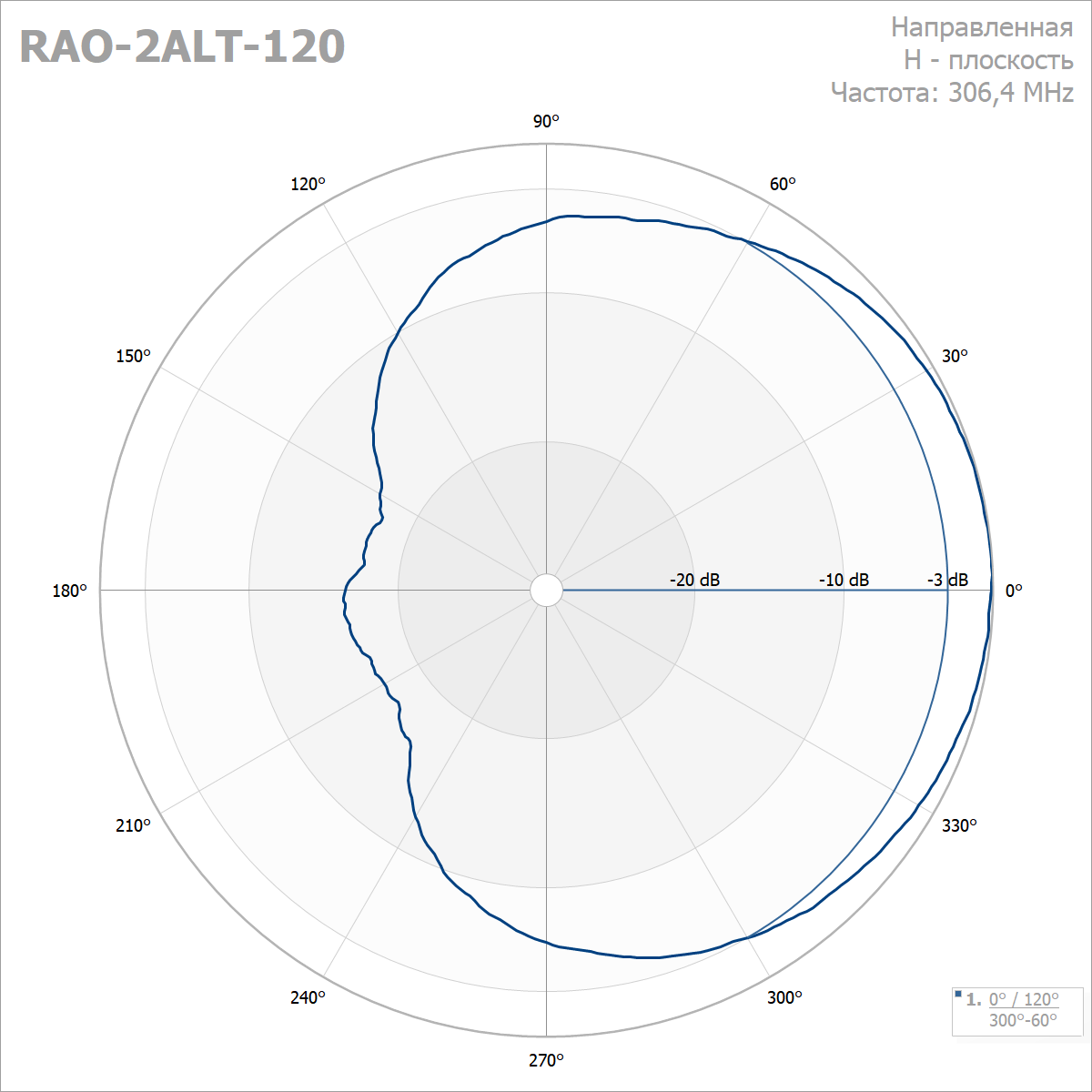

RAO-2ALT-120 H-plane
|

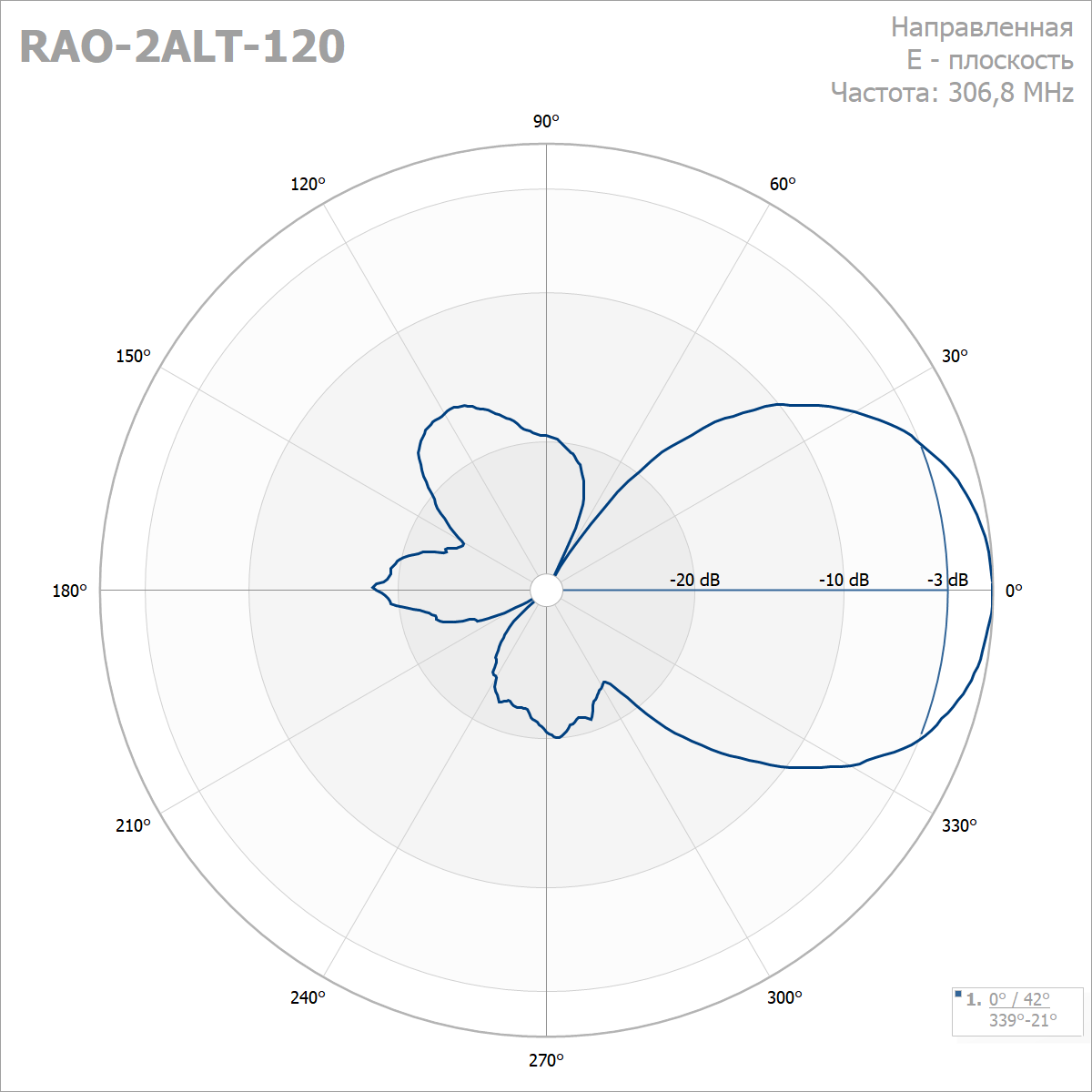

RAO-2ALT-120 E-plane
|

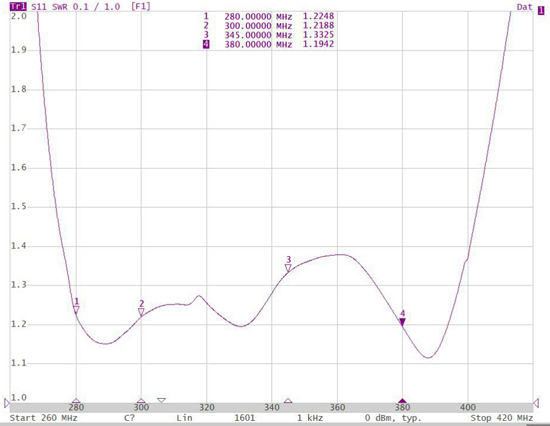

VSWR RAO-2ALT-120
|
| |
|
 |
