| Electrical specifications
| Model |
RAO-16-ADSB-120
|
| Operating frequency band, MHz |
1030 - 1090
|
| VSWR, not more than |
1,5
|
| Gain,dBi |
16
|
| Front-to-back ratio, dB |
18
|
| Sector in E-plane (-3 dB) |
10°
|
| Sector in H-plane (-3 dB) |
120°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
2000 (pulse)
|
| Polarization |
vertical
|
| Electrical downtilt |
00
|
Mechanical specifications
| Model |
RAO-16-ADSB-120
|
| Weight, kg |
8
|
| Radiating unit construction material |
brass
|
| Radome material |
ABS
|
| Standard mounting |
On mast 35-65 mm with clamps CP-55D or fasteners CP-115, CP-220
|
| Rated wind velocity, m/s |
40
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Dimensions, mm |
138x160,5x2142
|
| |

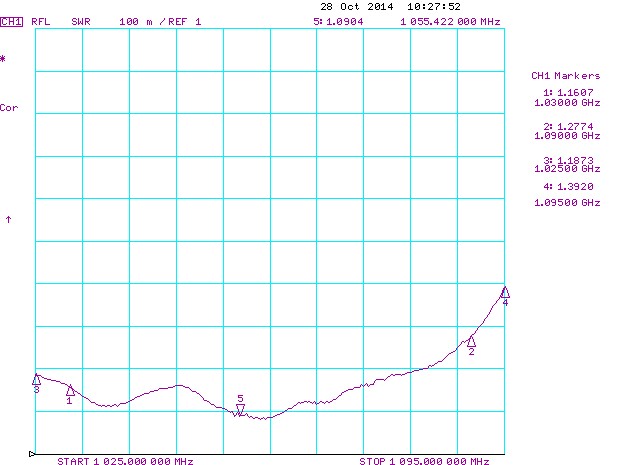

VSWR diagram RAO-16-ADSB-120

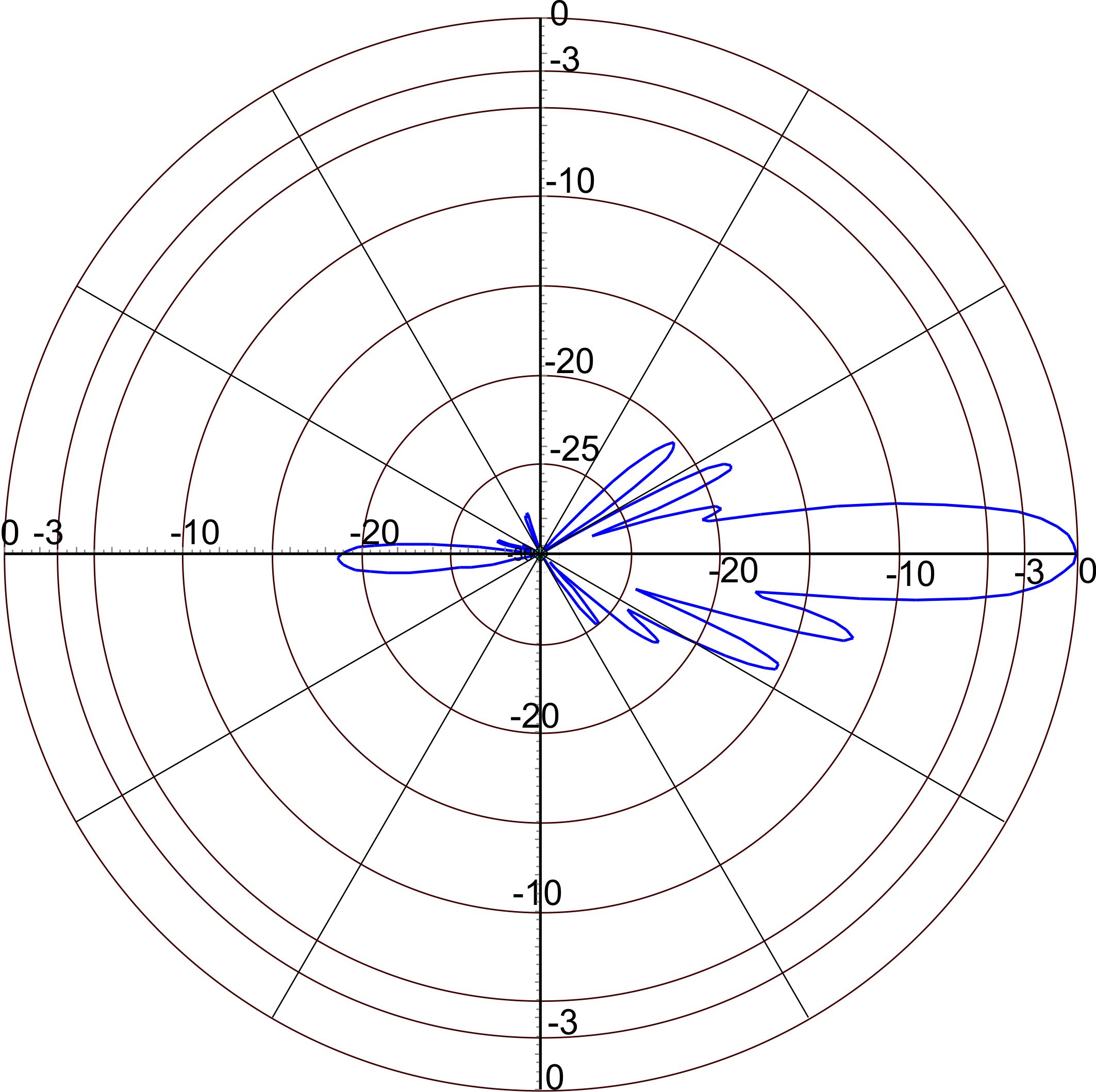

E-plane pattern
|

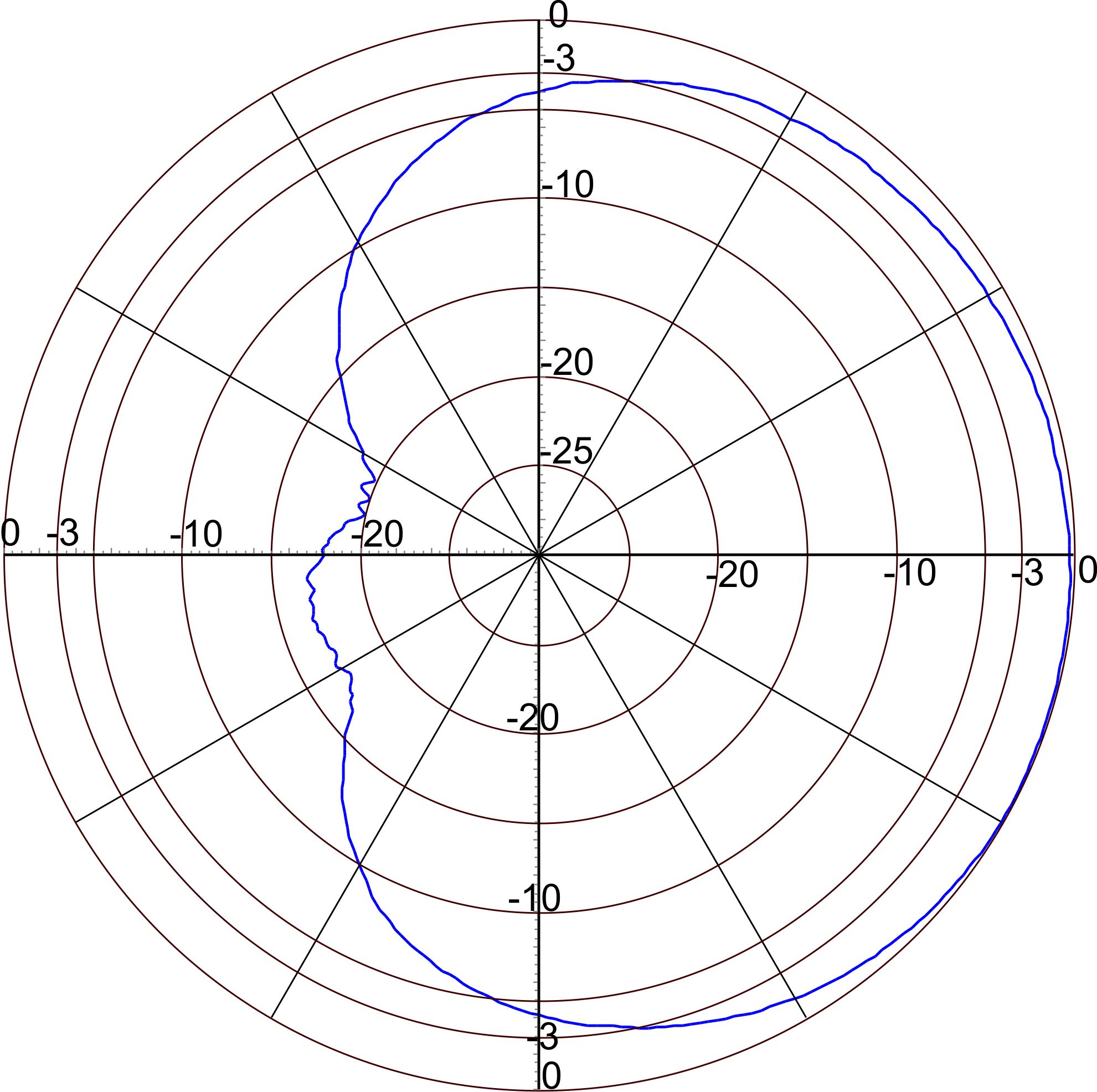

H-plane pattern
|
| |
|
 |
