| | Electrical specifications
| Model |
RAD2-10AU
|
| Operating frequency band, MHz |
225-400
|
| VSWR, not more than |
1,8
|
| Gain,dBi |
7,5
|
| Front-to-back ratio, dB |
16
|
| Sector in E-plane (-3 dB) |
65°
|
| Sector in H-plane (-3 dB) |
75°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
100
|
| Polarization |
linear
|
|
|
Mechanical specifications
| Model |
RAD2-10AU
|
| Weight not more than , kg |
6,8
|
| Radiating unit construction material |
aluminum
|
| Standard mounting |
On mast 35-65 mm with clamps CP-55D or fasteners CP-115, CP-220
|
| Rated wind velocity, m/s |
40
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Dimensions, mm |
800X800X260
|
| |

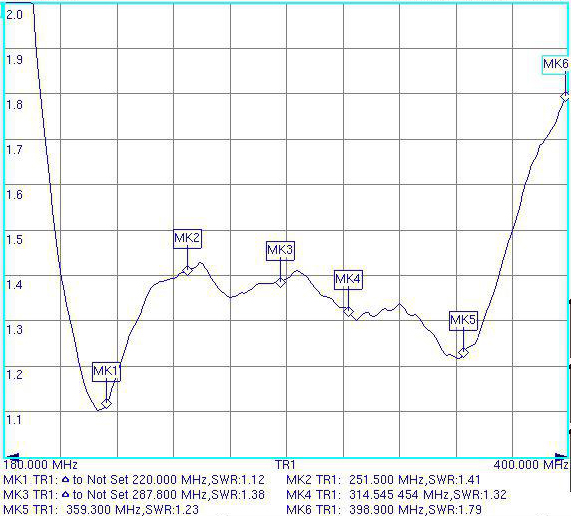

VSWR diagram RAD2-10AU

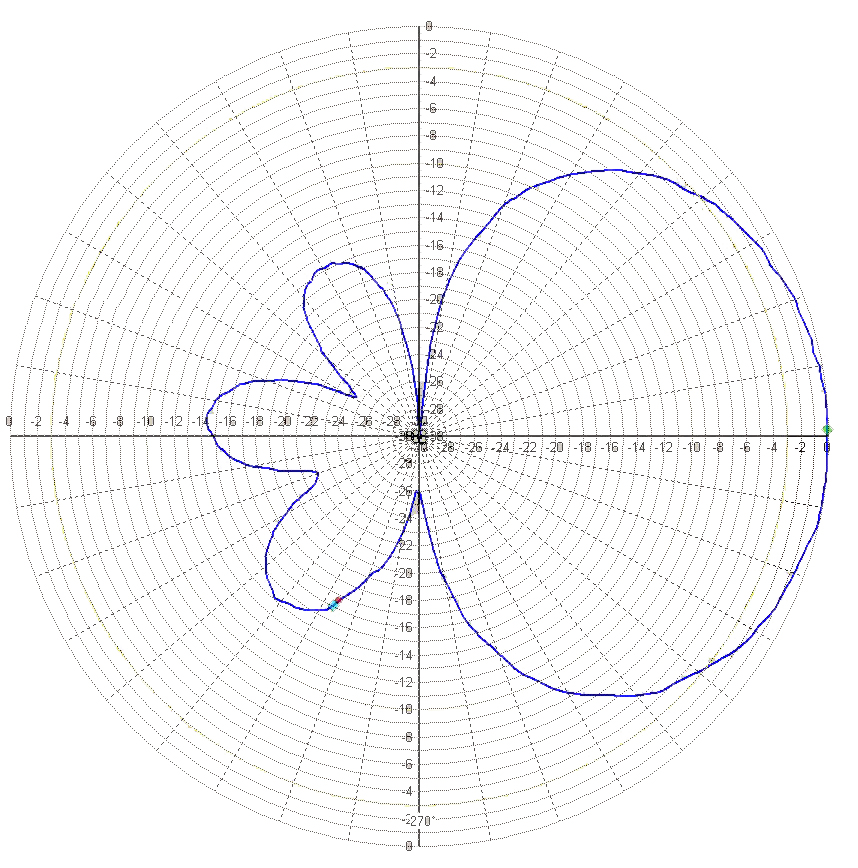

E-plane pattern
|

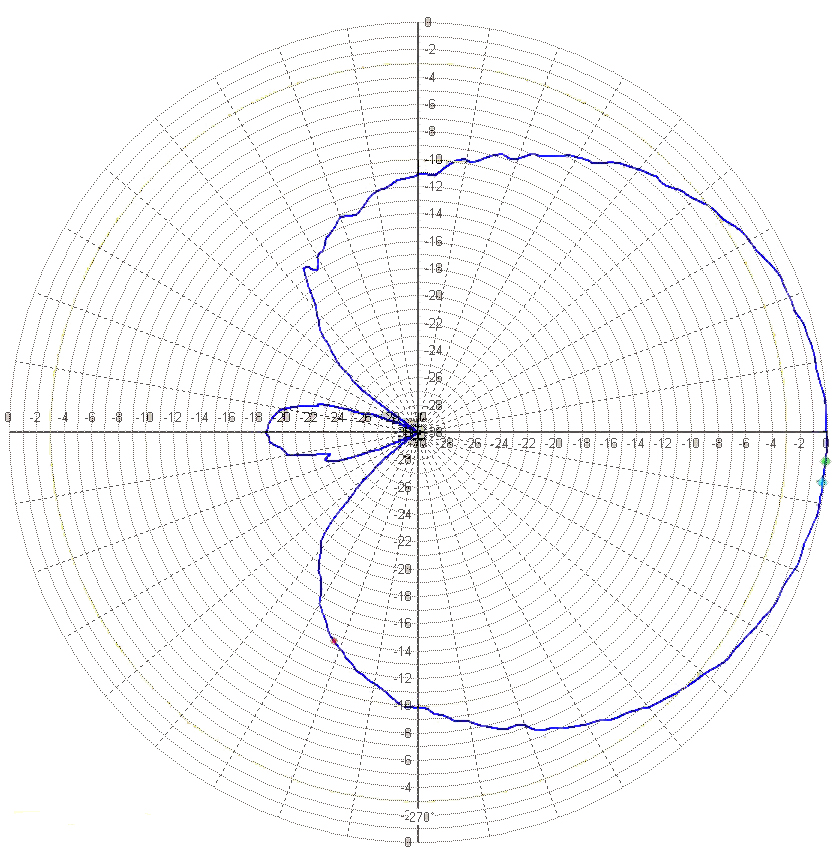

H-plane pattern
|
| |
|
 |
