| Electrical specifications
| Model |
RAO4-868-120
|
| Operating frequency band, MHz |
830-890
|
| VSWR, not more than |
1,5
|
| Gain,dBi |
12
|
| Sector in vertical plane , -3dB, ± 1° |
16°
|
| Sector in horizontal plane , -3dB, ± 5° |
120°
|
| Polarization |
vertical
|
| Impedance, Ohm |
50
|
| Max. power input, W |
400
|
Mechanical specifications
| Model |
RAO4-868-120
|
| Weight not more than , kg |
2,3
|
| Radiating unit construction material |
brass
|
| Radome material |
ABS
|
| Radome color |
grey
|
| Standard mounting |
to a 45-60 mm dia. tube
|
| Rated wind velocity, m/s |
33
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| Demensions, mm |
1030x130x120
|
| |

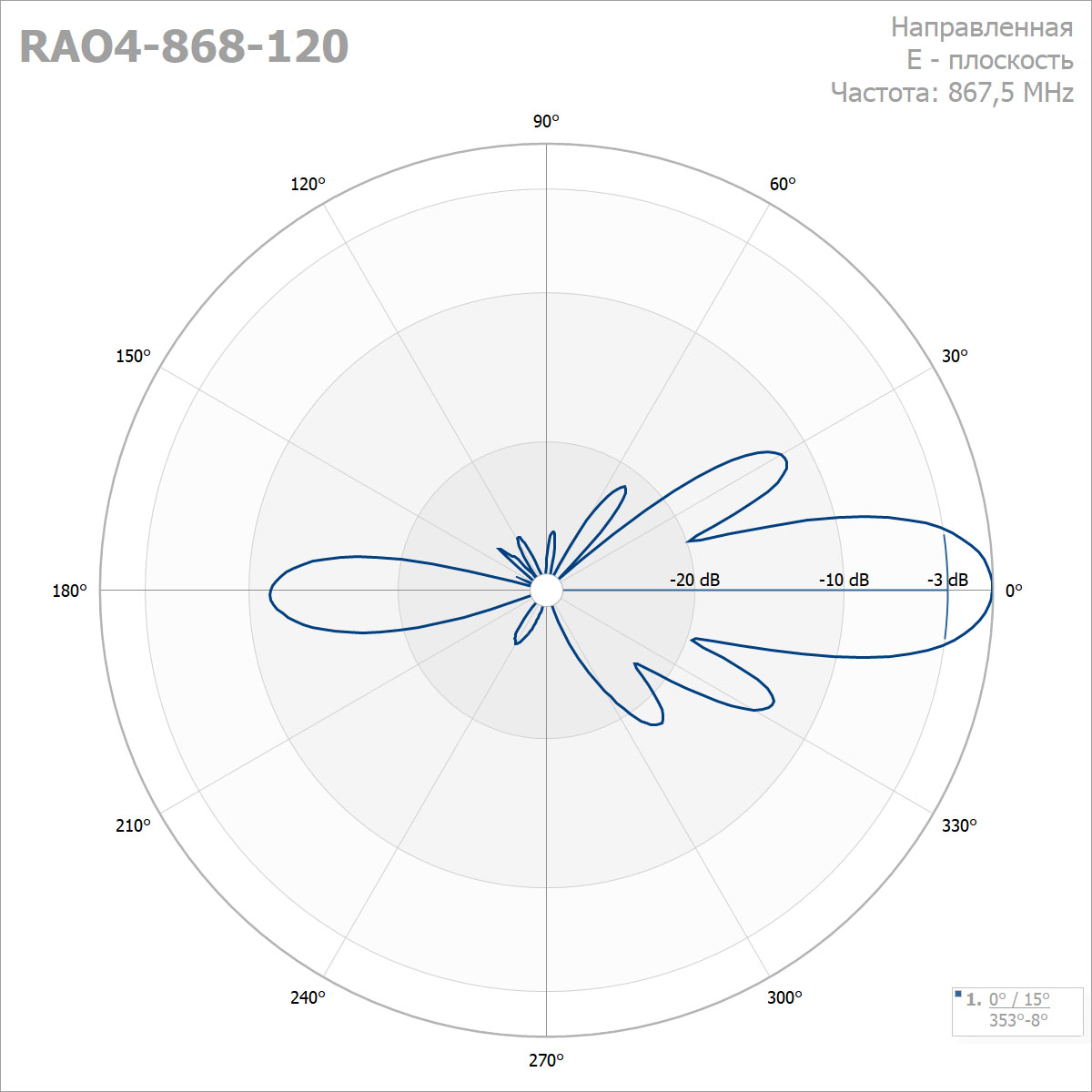

E-plane pattern RAO4-868-120
|

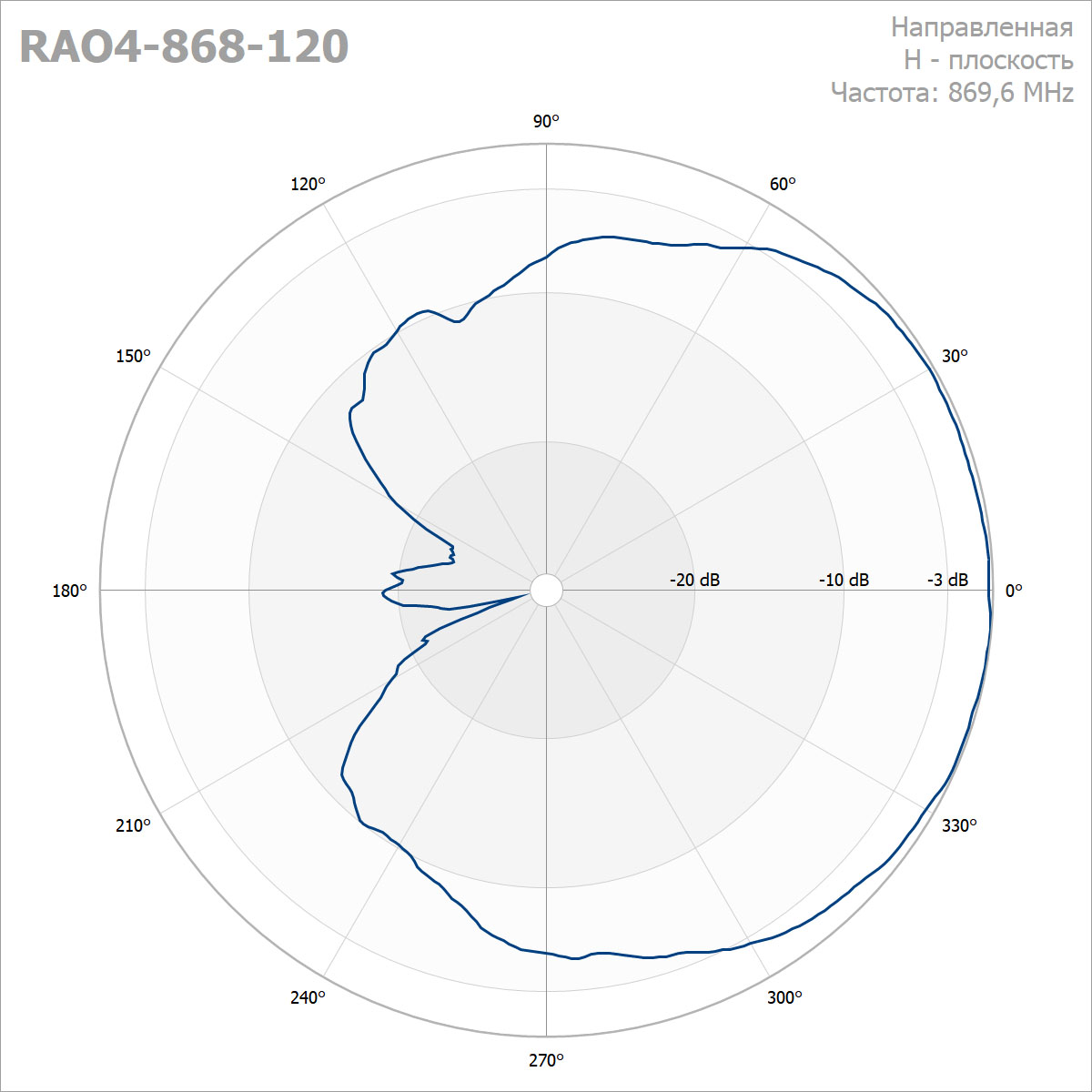

H-plane pattern RAO4-868-120
|

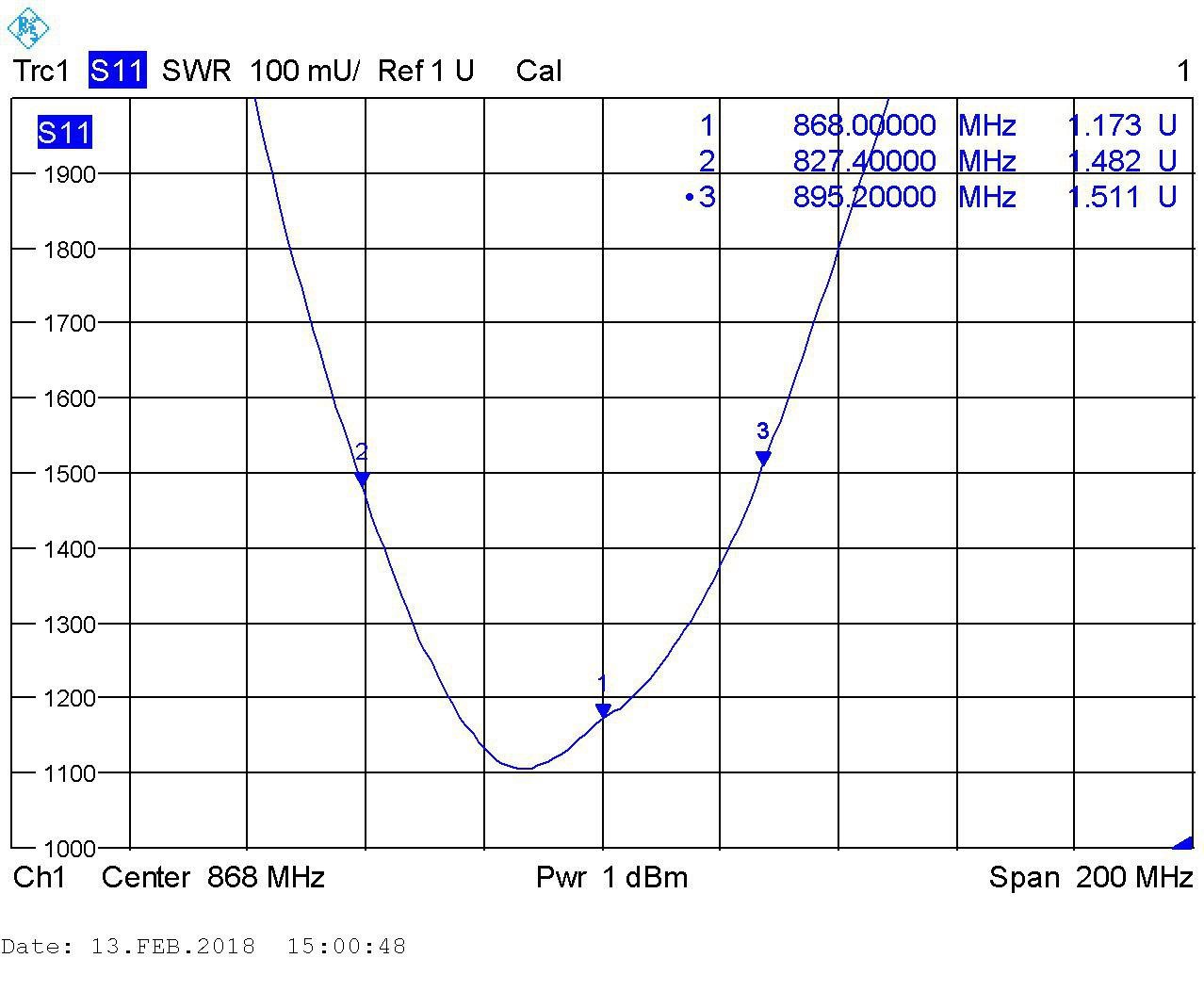

VSWR diagram RAO4-868-120
| |
|
 |
