| | Electrical specifications
| Model |
PSL2-6V
|
| Operating frequency band, MHz |
136-174
|
| Insertion loss (adjustable) not more, dB |
1-2
|
| Frequency bandwidth, MHz |
2-3,5
|
| Impedance, Ohm |
50
|
| VSWR, not more than |
1.5
|
| Input power, W |
150
|
| Temperature range, °C |
from -30 to + 50
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
PSL2-6V
|
| Weight, kg |
5.6
|
| Connector |
N-female
|
| Length/Width/Depth not more, mm |
480х330х60
|
| |

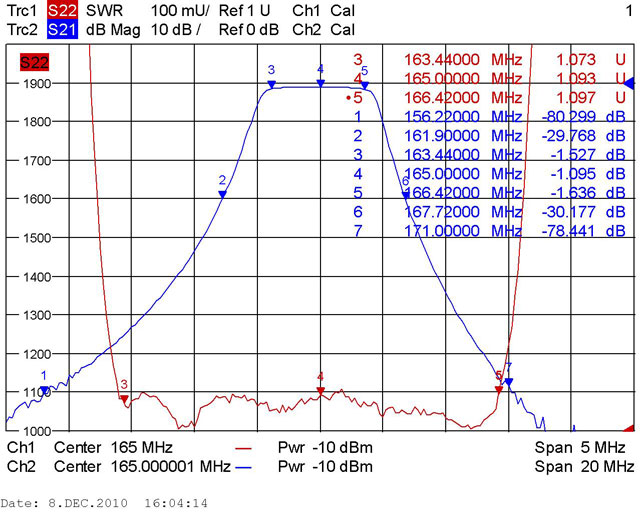

Preselectors typical gain-frequency characteristics
| |
|
 |
