 | | Electrical specifications
| Model |
PS2-6TV
|
| Operating frequency band, MHz |
470-606
|
| Insertion loss (adjustable) not more, dB |
0,8-2
|
| Max. frequency bandwidth, MHz |
8,0
|
| Impedance, Ohm |
50
|
| Gain |
see figure
|
| VSWR, not more than |
1,15
|
| Input power, W |
150
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
PS2-6TV
|
| Diameter, mm (ins.) |
50 (2")
|
| Weight, kg |
2,55
|
| Connector |
N-female
|
| Mount to 19-inch rack |
optional
|
| Length/Width/Depth not more, mm |
210х368х70
|
| |

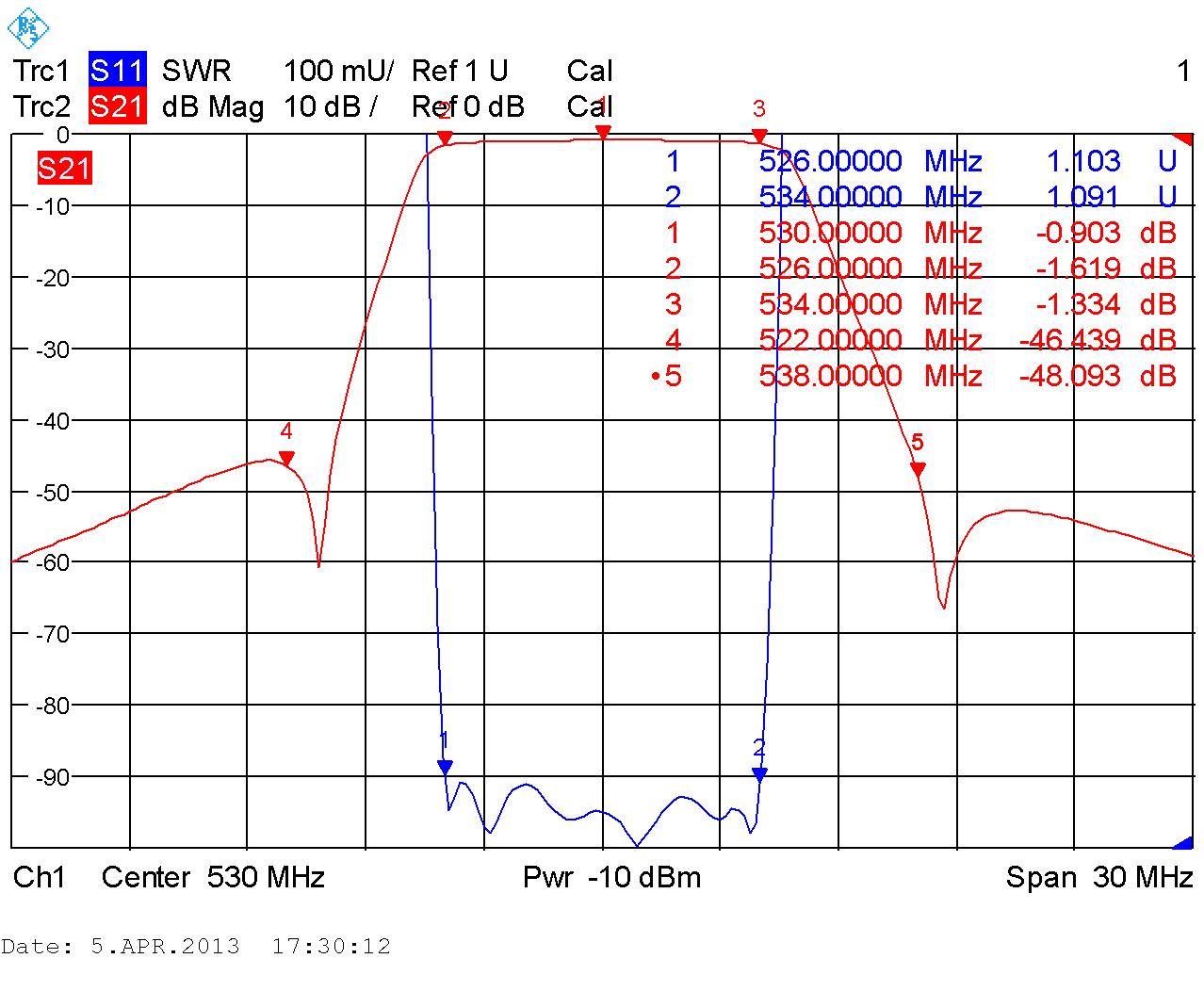

Preselectors typical gain-frequency characteristics
PS2-6TV
| |
|
 |
