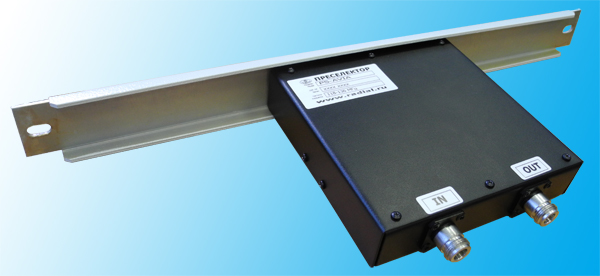

118-136 MHz Preselector PS-AVIA

118-136 MHz Preselector PS-AVIA
Electrical specifications
Model PS-AVIA
Operating frequency band, MHz 118-136
Insertion loss (adjustable) not more, dB 2,5
Impedance, Ohm 50
VSWR, not more than 2
Temperature range, °C -30 to +50
Mechanical specifications
Model PS-AVIA
Weight, kg 0,48
Connector N-female
Mount to 19-inch rack optional
Length/Width/Depth not more, mm 480х170х35

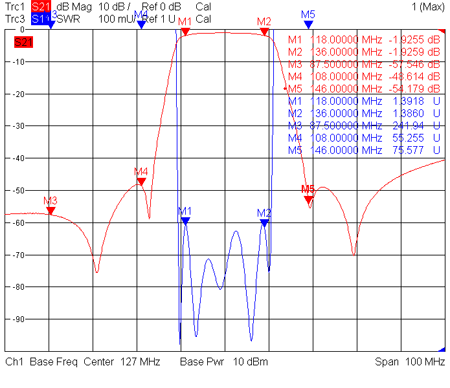

Preselector PS-AVIA typical gain-frequency characteristics
