| Electrical specifications
| Model |
MDF1-6UL-40 |
|
| Operating frequency band, MHz |
390-450 |
|
| Insertion loss (adjustable) not more, dB |
0,5 |
|
| Frequency separation TX/RX (min), MHz |
40 |
|
| Impedance, Ohm |
50 |
|
| Isolation, not less, dB |
75 |
|
| VSWR, not more than |
1.5 |
|
| Input power, not more, W |
50 |
|
| Temperature range, °C |
from -30 to +50 |
|
Mechanical specifications
| Model |
MDF1-6UH5/8
|
| Weight, kg |
0,7
|
| Connector |
N-female
|
| Dimensions (LxWxH), mm |
170х156х32
|
| |

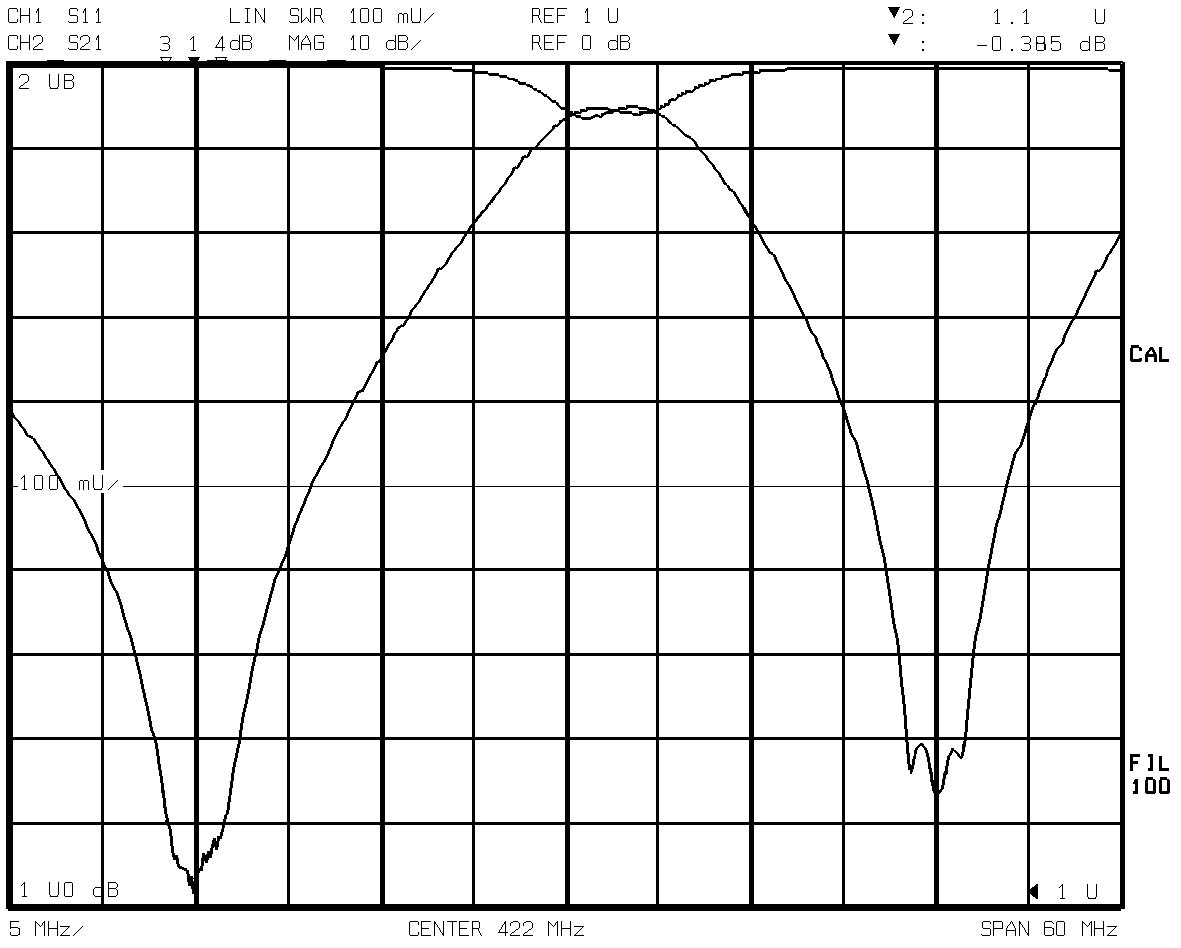

Typical duplexers response curves MDF1-6UL-40
| |
|
 |
