 | | Electrical specifications
| Model |
MDF1-12VH-4
|
| Operating frequency band, MHz |
160 - 175
|
| Insertion loss (adjustable) not more, dB |
2
|
| Frequency separation TX/RX (min), MHz |
4,5 - 10
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
90
|
| VSWR, not more than |
1.5
|
| Input power, not more, W |
not more than 50
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
MDF1-12VH-4
|
| Weight, kg |
1,1
|
| Connector |
N-female
|
| Dimensions (LxWxH), mm |
205x155x66
|
| |

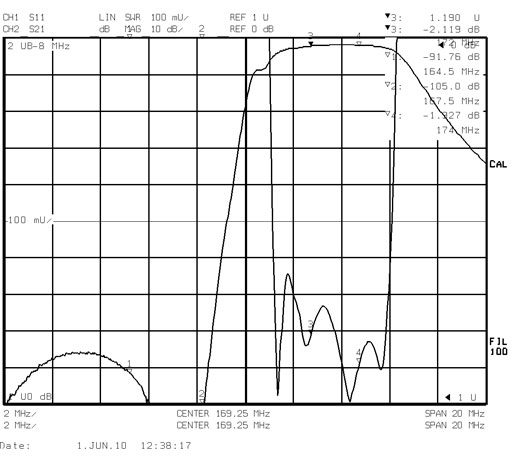

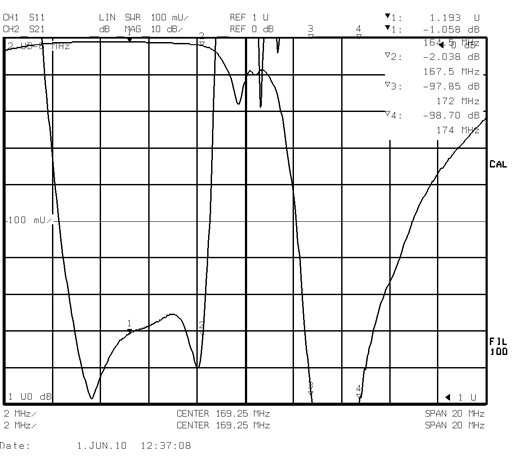

Typical duplexers response curves
| |
|
 |
