 | | Electrical specifications
| Model |
MDF1-6U-10
|
| Operating frequency band, MHz |
400-470
|
| Insertion loss (adjustable) not more, dB |
1.2
|
| Frequency separation TX/RX (min), MHz |
8-13
|
| Impedance, Ohm |
50
|
| Isolation, not less, dB |
85
|
| VSWR, not more than |
1.5
|
| Input power, not more, W |
not more than 50
|
| Temperature range, °C |
from -30 to +50
|
|
|
Mechanical specifications
| Model |
MDF1-6U-10
|
| Weight, kg |
1.1
|
| Connector |
N-female
|
| Dimensions (LxWxH), mm |
285x156x32
|
| |

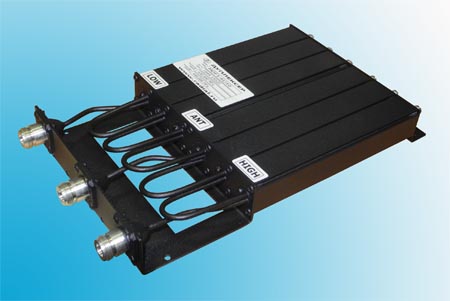

Duplexers are used in the civil radio (trunking), they are provides simultaneous operation the mobile station to transmit and receive on one antenna in the range of 400-470 MHz. However, these duplexers are ineffective, when implemented in base stations and a place with questionable electromagnetic environment.

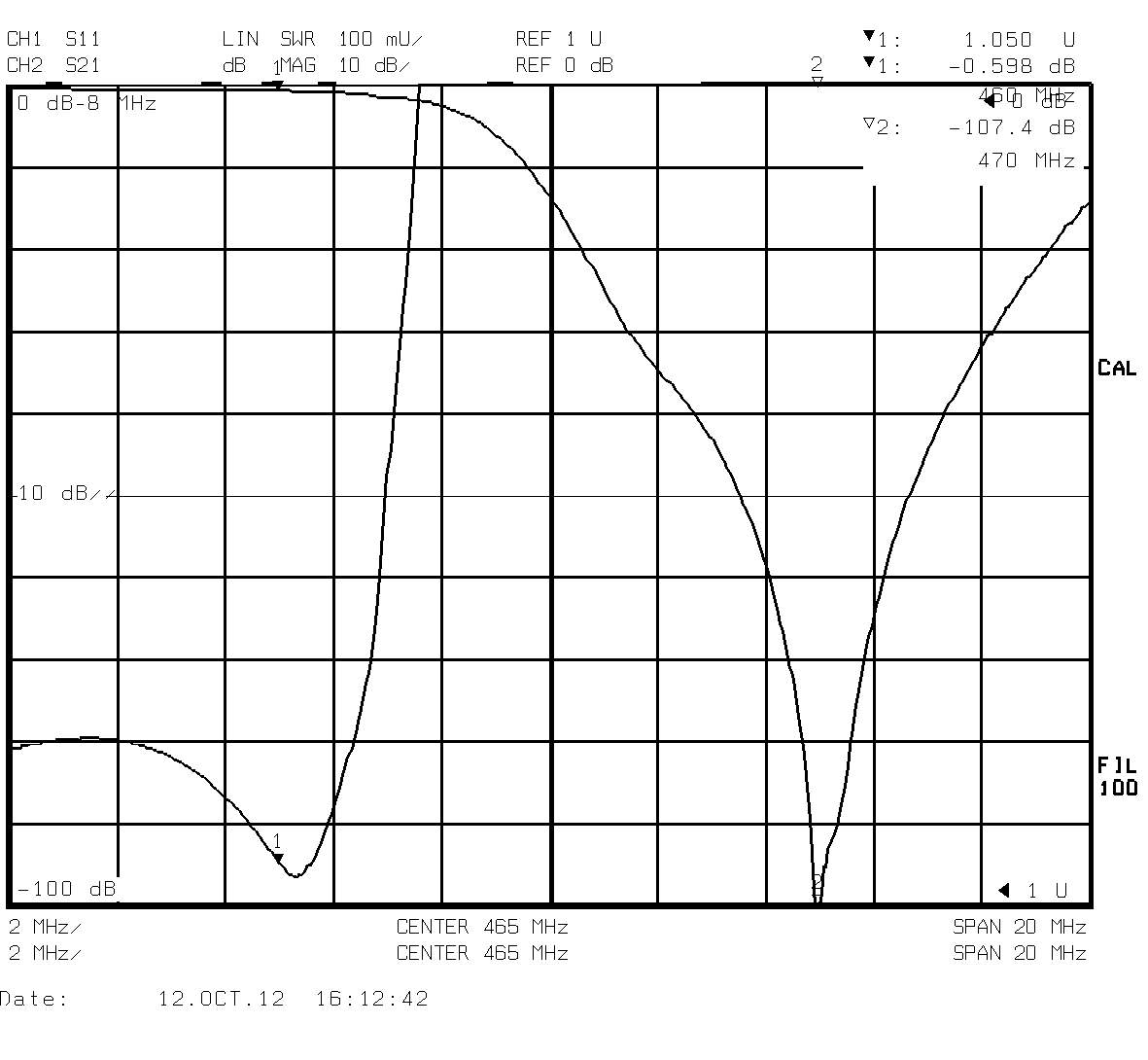

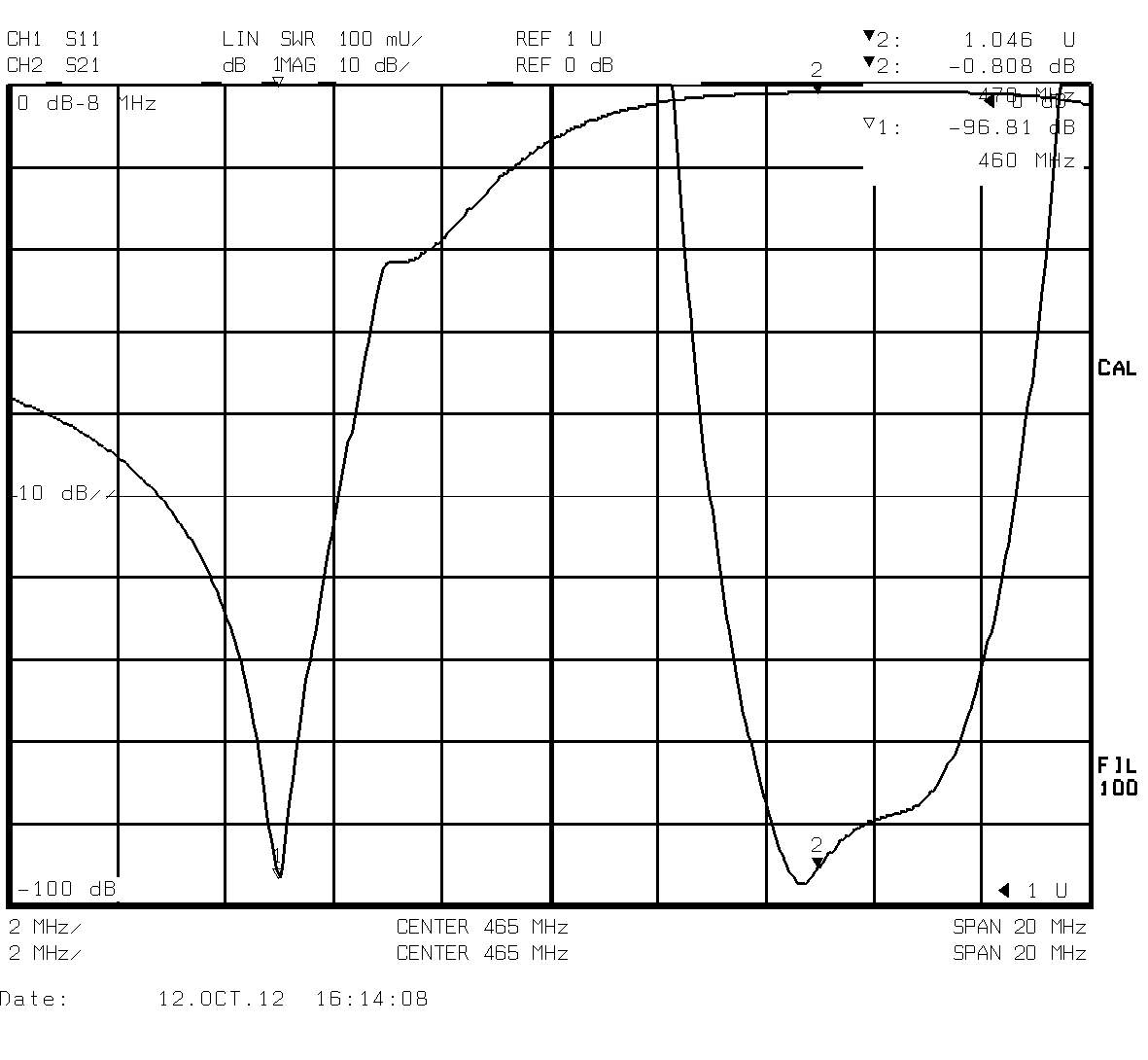

Typical duplexers response curves MDF1-6U-10
| |
|
 |
