 | Electrical specifications
| Model |
RH-4010
|
| Operating frequency band, m |
40/30/20/17/15/12/10
|
| Operating frequency band, MHz |
7/10/14/18/21/24/28
|
| VSWR, not more than |
2
|
| Gain, dBi |
3
|
| Polarization |
Vertical
|
| Max. power input, W* |
1000
|
| * The antenna power capacity is defined by the duration of transmission, type of transmission, its frequency, SWR and the ambient temperature.
|
Mechanical specifications
| Model |
RH-4010
|
| Dimensions, mm |
8930
|
| Weight, kg |
9,5
|
| Connector |
SO-239
|
| Material |
Aluminium alloy
|
| |
Vertical 7-band antenna for installation in small limited spaces. It doesn't require full-sized radials; custom adjustment for each band, emission at low angles, proper matching, high power are available. Traps are replaced with loading coils that allow to use antenna dimensions with maximum efficiency.
VSWR charts

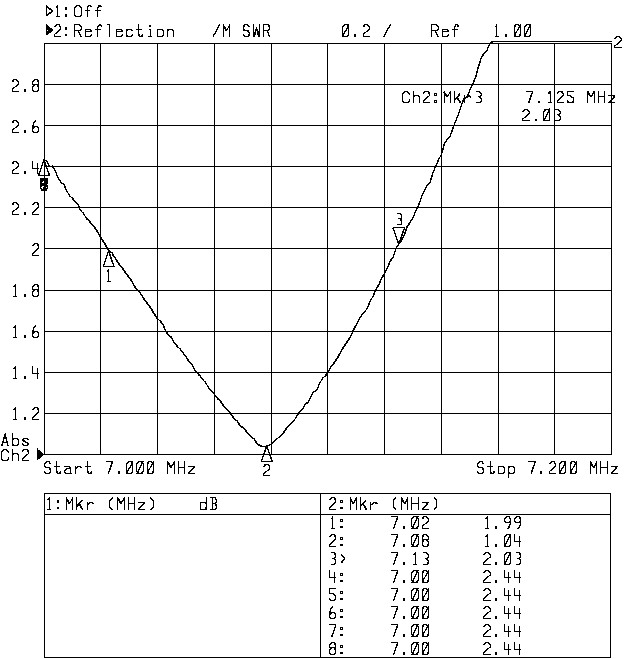

7 MHz
|

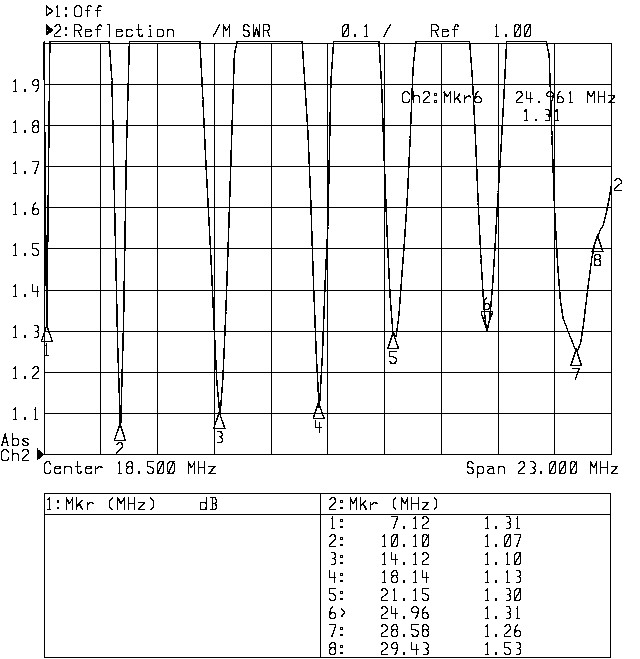

7-28 MHz
|

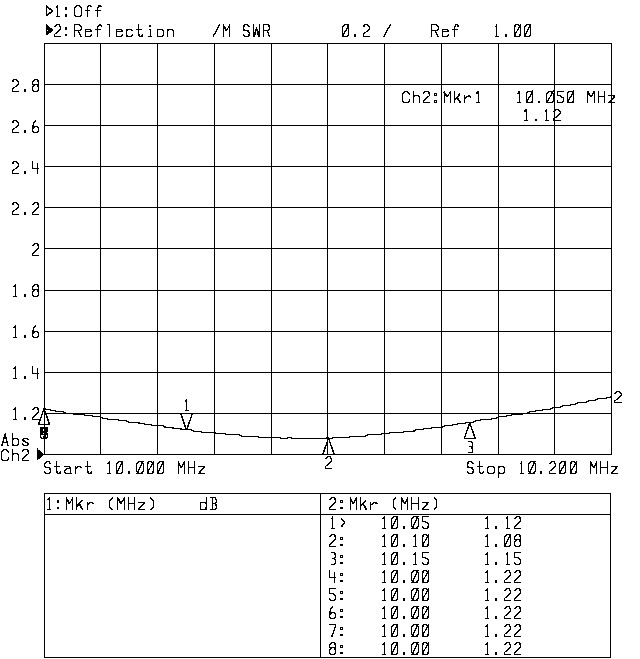

10 MHz
|

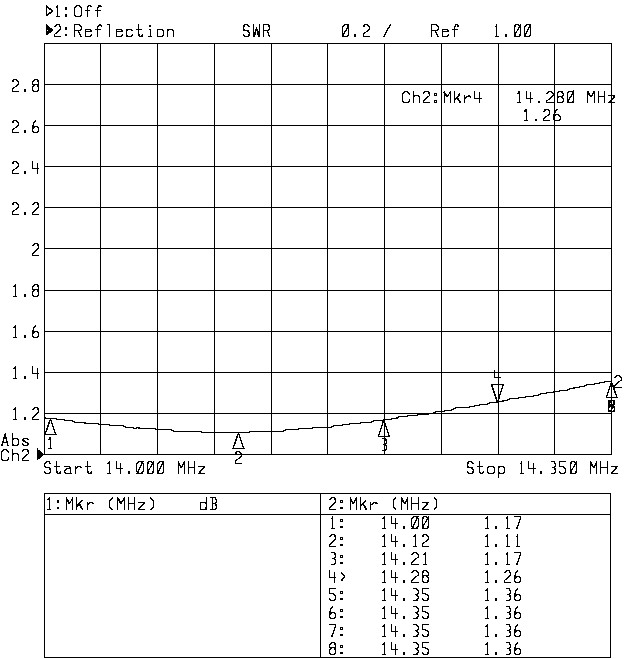

14 MHz
|

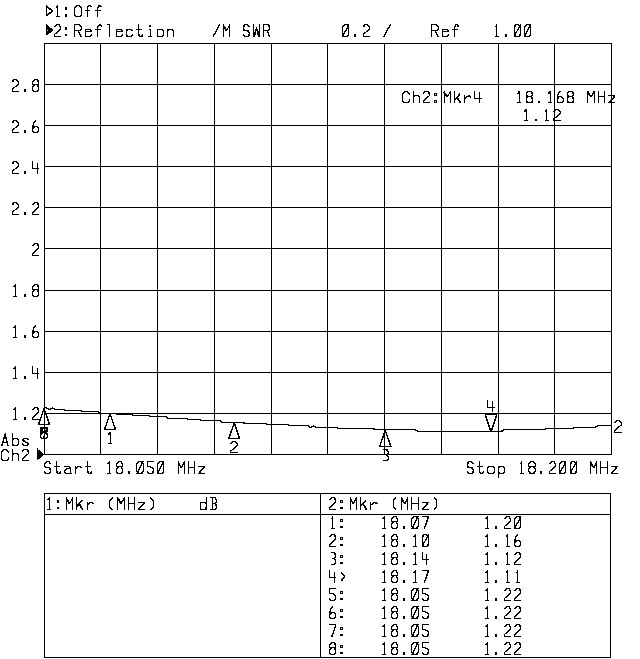

18 MHz
|

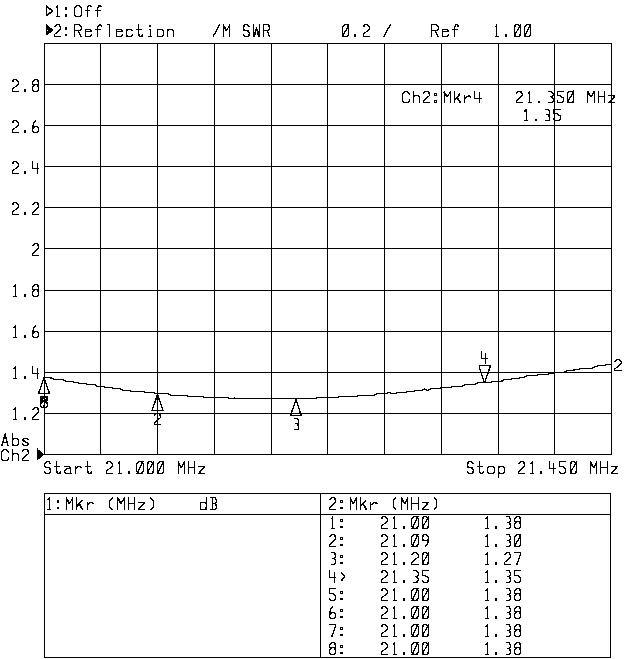

21 MHz
|

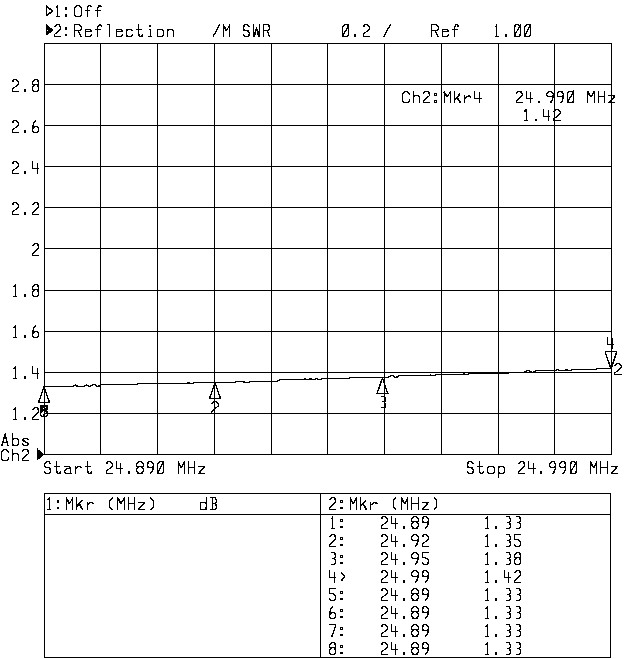

24 MHz
|

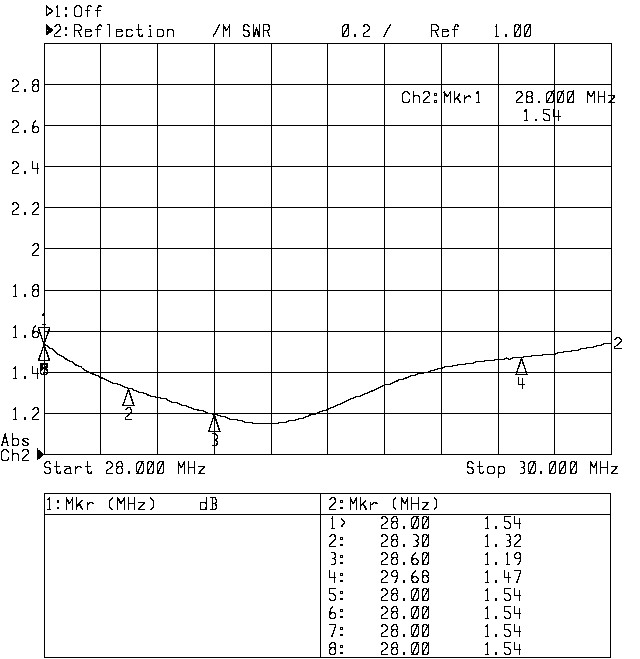

28 MHz
|
| |
|
 |
