550-650 MHz
Vertical transmitter antenna F7-DVB
550-650 MHz Vertical transmitter antenna F7-DVBElectrical specifications
Model F7-DVB
Operating frequency band, Mhz 550-650
Operating channels 31-41
Gain,dBi 6.8-7.1
VSWR, not more than 1.5
Polarization vertical
Max. power input, W 400
H-plane beamwidth 360°
E-plane beamwidth 20°
Impedance, Ohm 50
Lightning protection DC grounded
Mechanical specifications
Model F7-DVB
Dimensions (LxWxH), mm 1700x110x110
Weight, kg 6.2
Rated wind velocity, m/s 40
Radiator brass
Radome white fiberglass
Mounting On a mast 70-110 mm
Connector N-female (7/16 DIN optional)

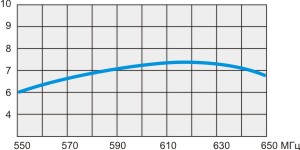

F7 DVB gain diagram

F7 DVB VSWR diagram

F7 DVB E-plane pattern

F7 DVB H-plane pattern
