 | Electrical specifications
| Model |
A10-1090
|
| Operating Frequency band, MHz |
1065-1134
|
| Adjustable |
no need
|
| VSWR, not more than |
1.5
|
| Gain,dBi |
10
|
| Impedance, Ohm |
50
|
| Max. Power input, W |
100
|
| Sector in E-plane (-3 dB) |
11°
|
| Polarization |
vertical
|
Mechanical specifications
| Model |
A10-1090
|
| Height/Length, M |
1.8
|
| Weight, kg |
0.85
|
| Mast diametr, mm |
35-70 (CPK-70)
|
| Construction material |
copper
|
| Rated Wind Velocity, m/s |
55
|
| Temperature Range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |

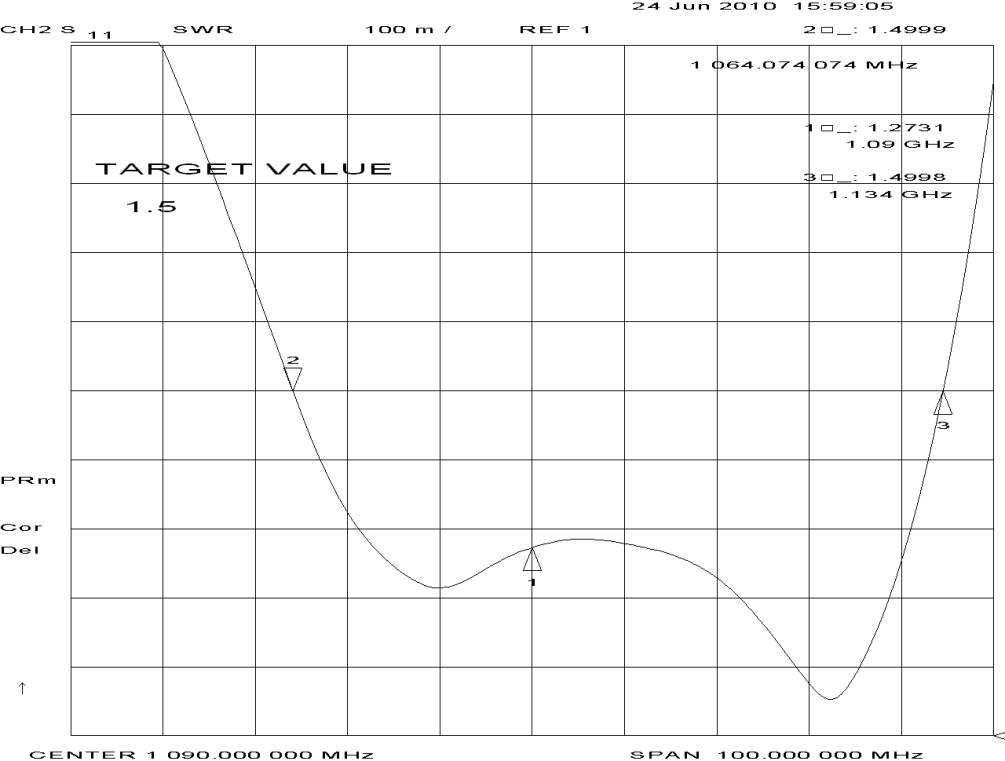

VSWR diagram

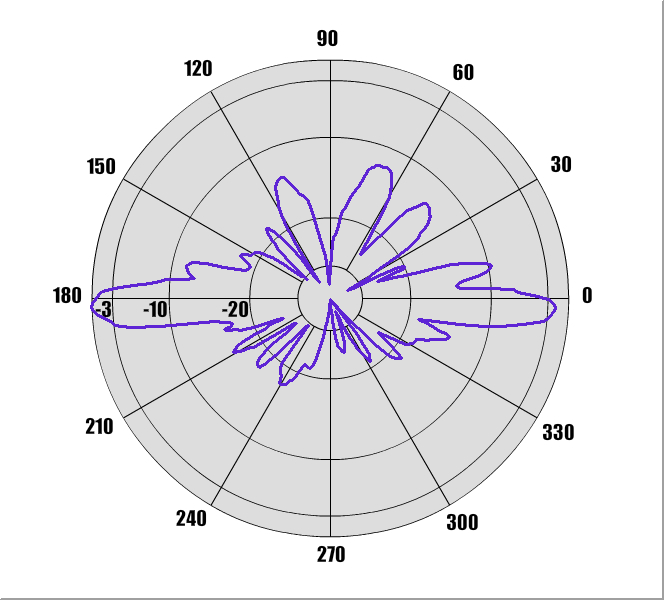

A10-1090 E-plane pattern
| |
|
 |
