 | Electrical specifications
| Model |

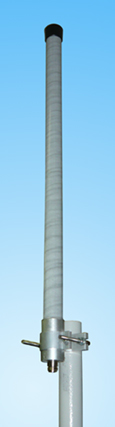

A23-70cm
|
| Frequency Range, MHz |
414-448
|
| Gain, dBi |
3
|
| VSWR |
1.5
|
| Polarization |
Vertical
|
| Impedance, Ohm |
50
|
| Input Power, W |
50
|
| Vertical Beam Width, deg |
60
|
| Lightning protection |
DC grounded
|
Mechanical specifications
| Model |
A23-70cm
|
| Weight, kg |
0.3
|
| Length, mm |
634
|
| Diameter of radome, mm |
30
|
| Radome material |
White/grey fiberglass
|
| Radiator material |
Cooper
|
| Diameter of support, mm |
35
|
| Mast diameter, mm |
35-70
|
| Mount kit |
CPK-70 for mast 35-70 mm or for wall mounting
|
| Connector |
N-female
|
| Operating temperature, deg.C |
from -50 to +50
|
| |
A23-70cm E-plane pattern
|
A23-70cm VSWR diargam
|
| |
|
 |
