Antenna power divider SVC-2GW
800-2500 MHz

SVC-2GW
SVC-3GW
SVC-4GW
Electrical specifications
Model SVC-2GW
Operating frequency band, MHz 800-2500
Insertion loss, dB 0.1
Impedance, Ohm 50
VSWR, not more than 1.3
Input power, not more, W 20
Temperature range, °C from -30 to +60
Inputs 2
Mechanical specifications
Model SVC-2GW
Weight, g 500
Connects to feeder with N-female
Connects to antenna with N-female
Dimensions, mm 195x60x25

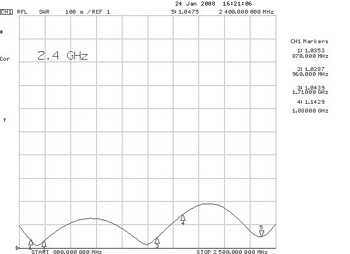

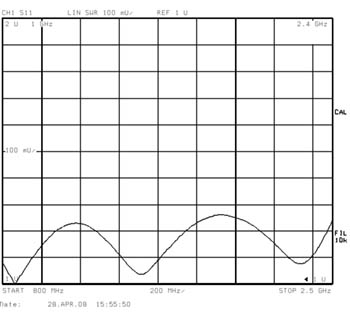

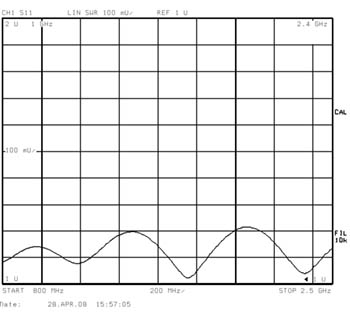

VSWR SVC-2GW


SVC-2GW

SVC-3GW
SVC-4GW
