Broadcasting SV antennas power dividers

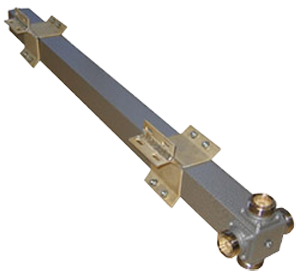

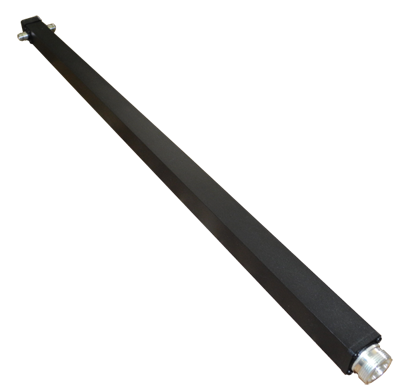

SV-4FM-N

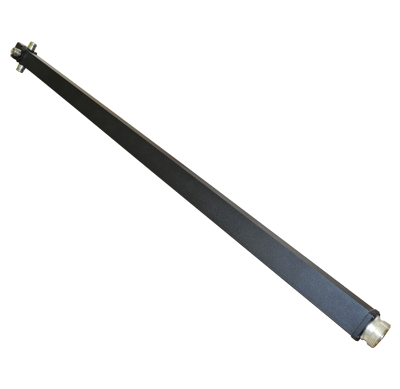

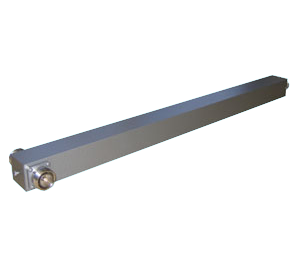

SV-2FM-N

SV-2FMW

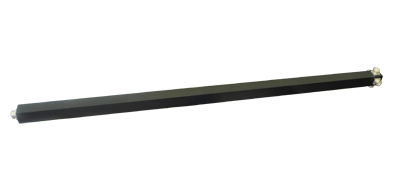

SV-4FMW

SV-2FM-7/16

SV-4FM-7/16

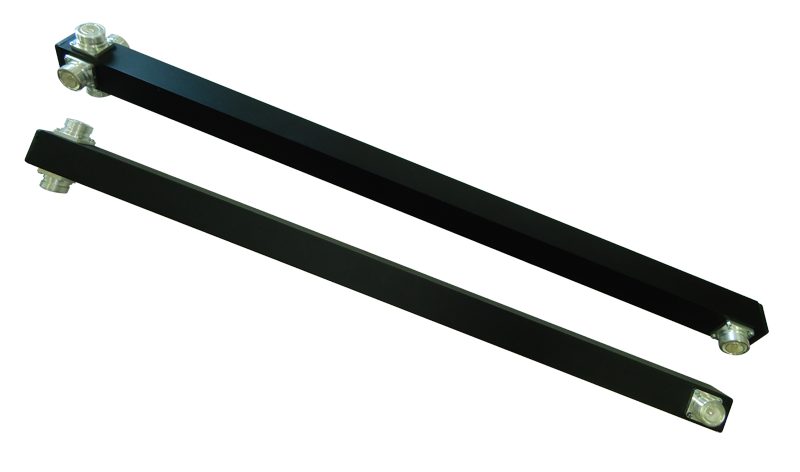

SVW-4FMT, SVW-2FMT

Electrical specifications
Model Inputs Operating band, MHz VSWR Max. Power input, kW Input-output insertion loss, dB
SV-2FM-N 2 88-100/100-108 not produced
SV-4FM-N 4 88-100/100-108 not produced
SV-2FM-7/16 2 88-100/100-108 not produced
SV-4FM-7/16 4 88-100/100-108 not produced
SV-2FMW-3 2 87.5-108 1.1 3 0.09
SV-2FMW-5 2 87.5-108 1.1 5 0.09
SV-3FMW-3 3 87.5-108 1.1 3 0.09
SV-3FMW-5 3 87.5-108 1.1 5 0.09
SV-4FMW-3 4 87.5-108 1.1 3 0.09
SV-4FMW-3 4 87.5-108 1.1 5 0.09
SVW-2FMT-7/16 2 87.5-108 1.15 2 0.09
SVW-2FMT-N 2 87.5-108 1.15 1 0.09
SVW-4FMT-7/16 4 87.5-108 1.15 2 0.09
SVW-4FMT-N 4 87.5-108 1.15 2 0.09

The models "SV" - the adders/dividers of the power for 2,3 and 4 input/output have been constructed on quarter-wave transformers on the basis of rigid lines. They have broader bandwidth, decreased losses and bigger permissible input power (due to the air dielectric). Moreover we propose the variants of the completing the products by connectors that are suitable for various power levels: N-type or 7/16 DIN. The mounting of the adder units of series "SV" to the mast is possible by means of additional mounting unit MK-25, MK-30 or MK-40. The main parameters of the adder units as well as the recommended mounting unit are presented in the Table.
