Power dividers SV-2T-LTE, SV-4T-LTE 380-2700 MHz
Electrical specifications
Model SV-2T-LTE SV-4T-LTE
Operating frequency band MHz 380-2700
Number of outputs 2 4
VSWR 1,3
Impedance, Ohm 50
Loss input-output dB (400 MHz), dB 0.2 0.2
Max. power input 300 400
Mechanical specifications
Model SV-2T-LTE SV-4T-LTE
Weight, g 600 800
Connects to feeder with N-female N-female
Connects to antennas with N-female N-female
Dimensions (LxWxH), mm 380x25x65 380x65x65

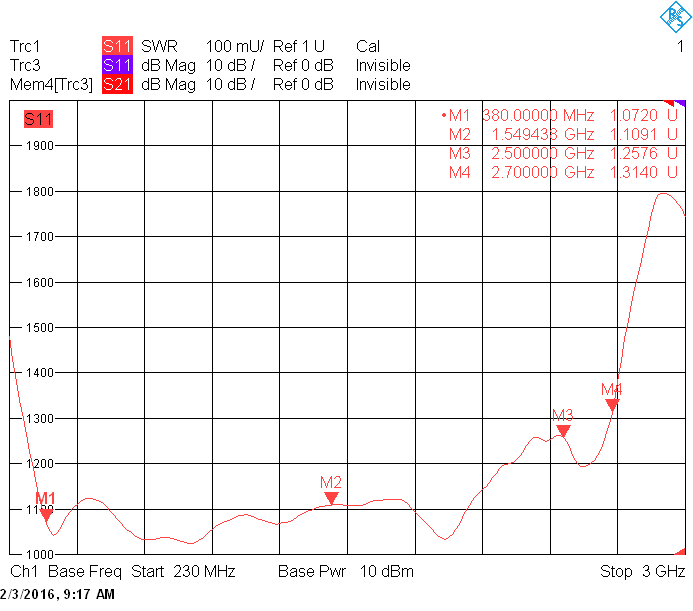

VSWR diagram SV-2T-LTE

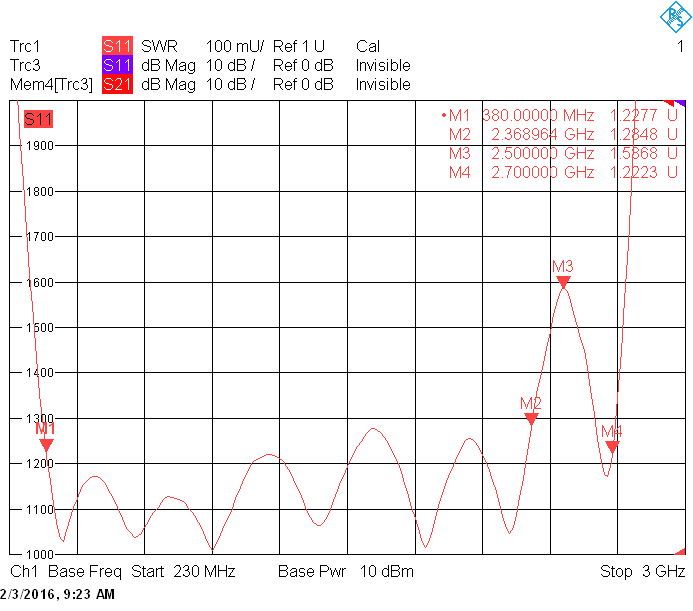

VSWR diagram SV-4T-LTE
