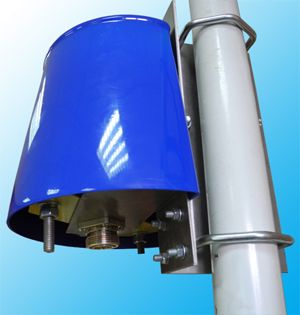

1-30 MHz Balun BR-5000-1
1-30 MHz Balun BR-5000-1
Electrical specifications
Model Balun BR-5000-1
Operating frequency band, MHz 1-30
Impedance ratio 50:50
Impedance, Ohm 50
VSWR, not more than 1,2
Insertion loss, dB 0.1-0.2
Input power, not more, W 5000
Connector 7/16 DIN
Weight, kg 2.3
Length/Width/Depth, mm 240x230x205

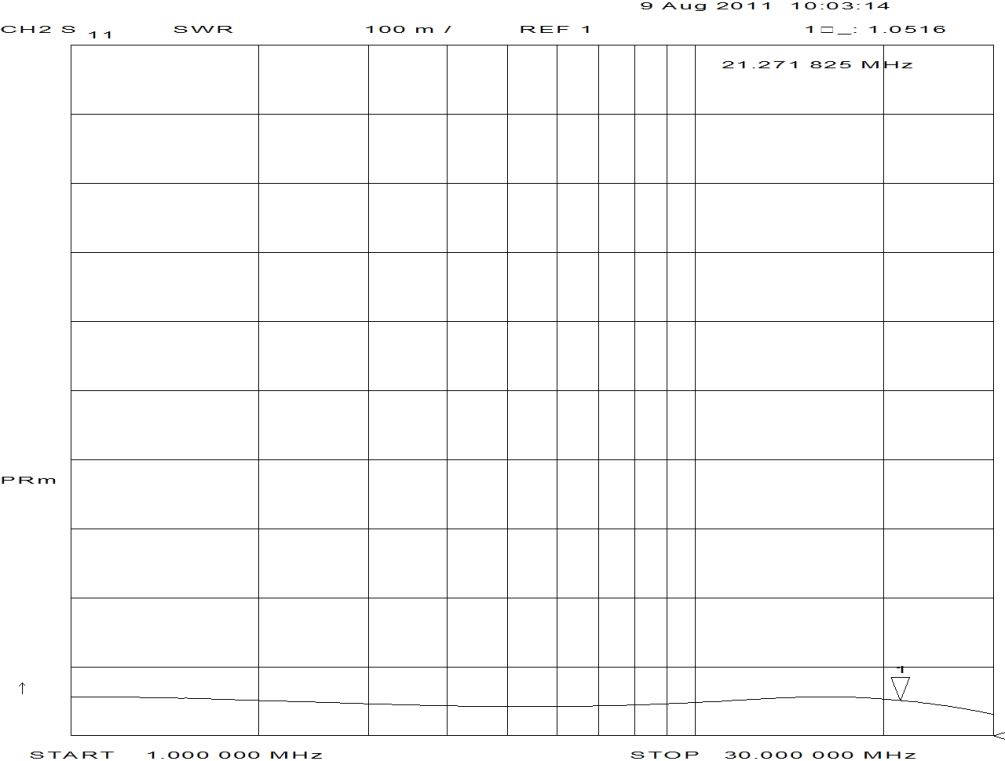

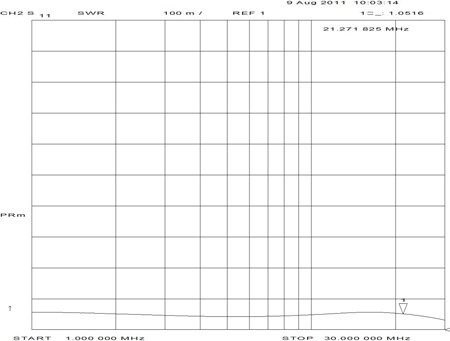

VSWR diagram BR-5000-1
Finland, Pulsa
