| Electrical specifications
| Model |
Balun
|
| Operating frequency band, MHz |
2-30
|
| Impedance ratio |
50:450 (1:9)
|
| Insertion loss, dB |
0.3
|
| Input power, not more, W |
1000 (CW, SSB)
|
| Connector |
7/16 DIN female
|
| Weight, kg |
3
|
| Length/Width/Depth, mm |
260х120х120
|
| Impedance, Ohm |
50
|
| |

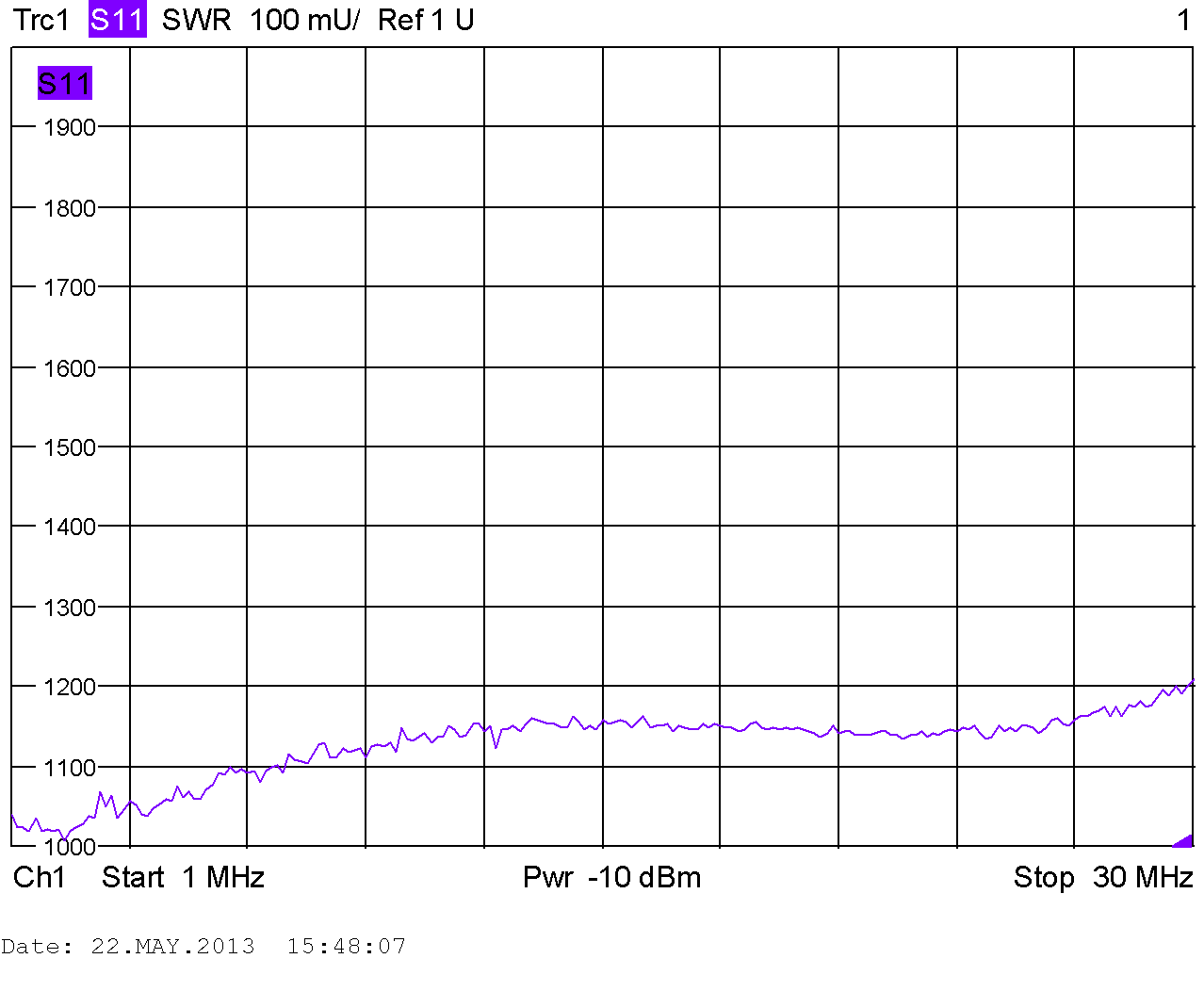

VSWR diagram
| |
|
 |
