 | | Electrical specifications
| Model |

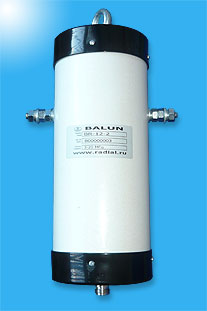

Balun BR
|
| Operating frequency band, MHz |
2-30
|
| Impedance ratio |
|
| BR-2000-1 |
5:50
|
| BR-2000-2.5 |
50:200
|
| BR-2000-6 |
50:300
|
| BR-2000-9 |
50:450
|
| BR-2000-16 |
50:800
|
| BR-2000-12 |
50:600
|
| Impedance, Ohm |
50
|
| VSWR, not more than |
1,2
|
| Input power, not more, W* |
2000
|
| Connector |
SO-239
|
| Weight, kg |
1340
|
| Length/Width/Depth, mm |
300x ∅ 160
|
| * The antenna power capacity is defined by the duration of transmission, type of transmission, its frequency, SWR and the ambient temperature.
|
|
|
| |

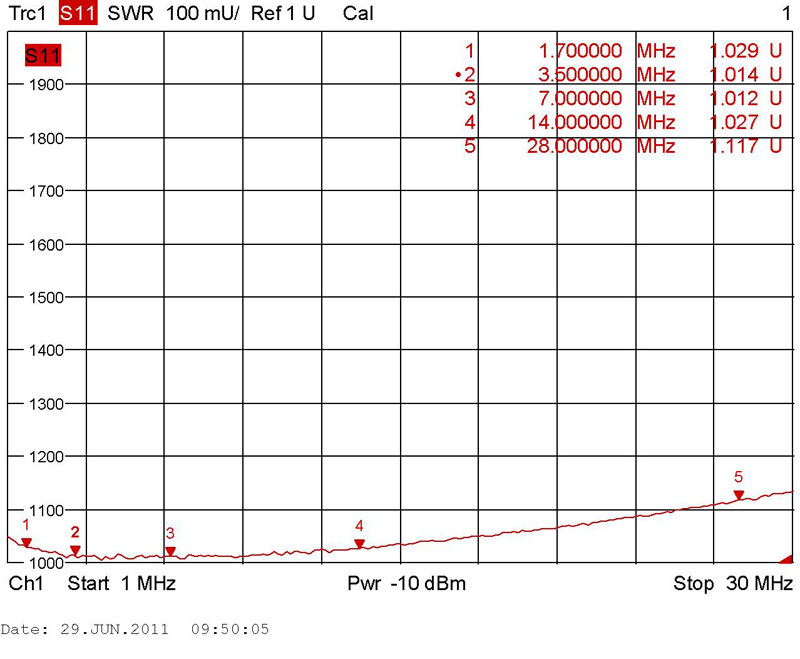

VSWR diagram BR-2000-9
| |
|
 |
