SRP-2U
|
| | Electrical specifications
| Model |
SRP-2V |
SRP-2U
|
| Operating frequency band, MHz |
140-174 |
400-490
|
| Number of channels |
2 |
2
|
| Min. level of isolation RX-RX, dB |
20 |
20
|
| Typical level of isolation RX-RX, dB |
30~40 |
30~40
|
| Gain, dB |
0-+12 |
0-+12
|
| VSWR, not more than |
1,3 |
1,3
|
| Impedance, Ohm |
50 |
50
|
| Max. frequency bandwidth, MHz |
1,5 |
2,5
|
| Noise figure, dB |
2,1
|
| Voltage, V |
5-14
|
| Current, mA |
120
|
|
|
Mechanical specifications
| Model |
SRP-2V |
SRP-2U
|
| Weight, kg |
2.4 |
2.4
|
| Length/Width/Depth, mm |
485х270х133 |
485х270х133
|
| Temperature range, °C |
from -30 to +50
|
| Connectors |
N-female
|
| Mount to 19-inch rack |
present
|
| |

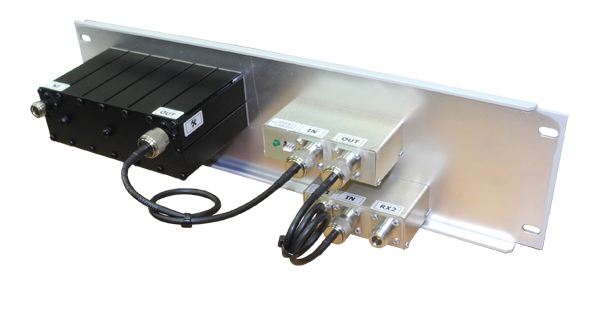

Compact and best price/quality ratio this is the description for receiver distribution panel. It combines bandpass helical resonator preselector, variable gain amplifier and 2-channel receiver power splitter. This is perfect option for you, if you have limited space in the telecommunication cabinet and response curve slope of preselector is enough for you.

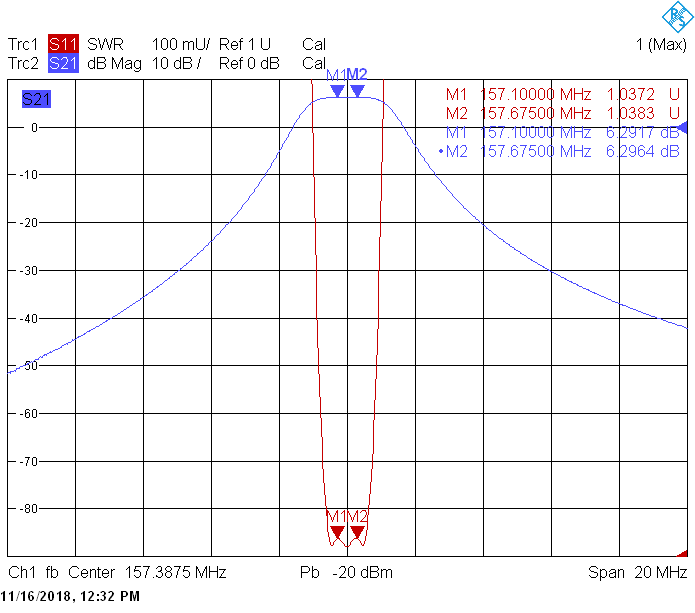

Typical gain-frequency characteristic SRP-2U
|

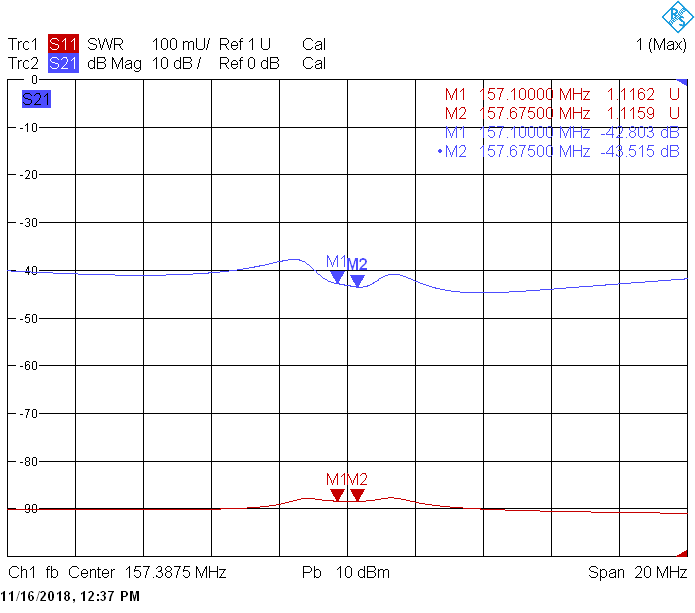

RX/RX isolation
|
| |
|
 |
