| | Electrical specifications
| Model |
SRP-6Av
|
| Operating frequency band, MHz |
118-136
|
| Typical level of isolation, dB |
30~40
|
| Min. level of isolation, dB |
20
|
| Gain, dB |
0 - +9
|
| Impedance, Ohm |
50
|
|
|
|
|
Mechanical specifications
| Model |
SRP-6Av
|
| Weight, kg |
2,3
|
| Length/Width/Depth, mm |
484х133х160
|
| Temperature range, °C |
-30 - +50
|
| Connectors |
N-female
|
| |

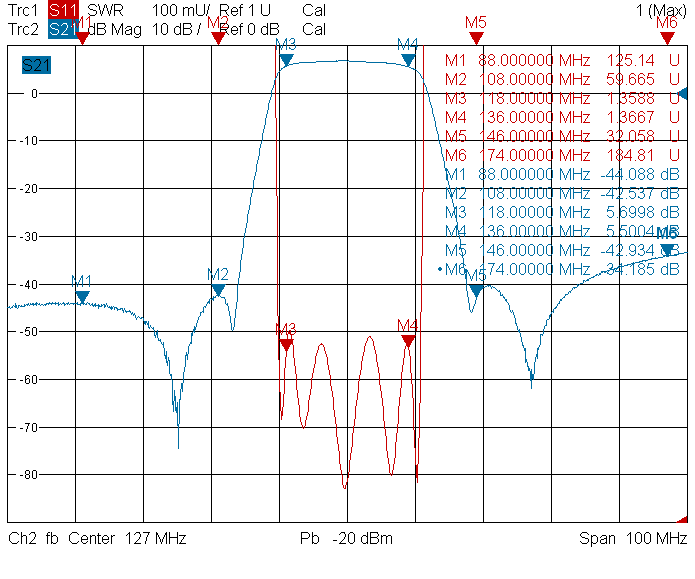

Typical gain-frequency characteristic SRP-6Av
| |
|
 |
