430-440 MHz. HAM directional antenna Y8-70cm
Electrical specifications
Model Y8-70cm
Operating Frequency band, MHz 430-440
Frequency bandwidth, MHz 10
VSWR, not more than 1.5
Gain,dBi 13.5
Impedance, Ohm 50
E-plane sector -3dB 370
H-plane sector -3dB 420
Lightning protection DC grounded
Polarization Horizontal
Power, W
Mechanical specifications
Model Y8-70cm
Dimentions, mm 1660x350x25
Mast diametr, mm KP-65
Construction material aluminum
Connector N-female

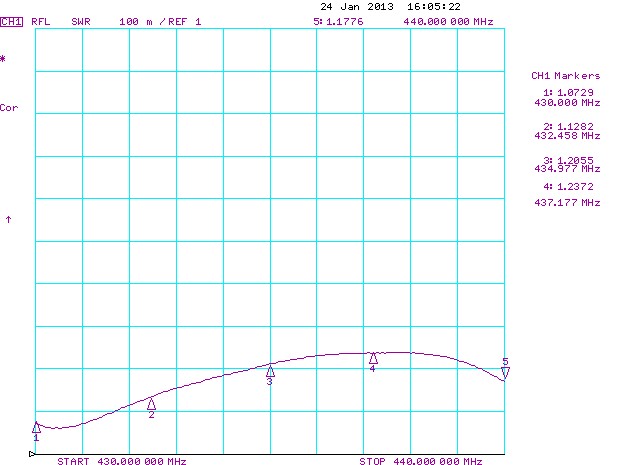

VSWR diagramm

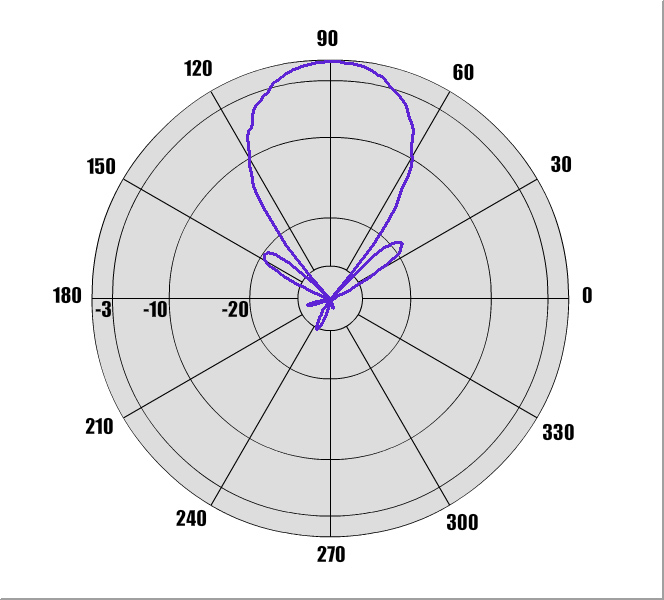

E-plane pattern

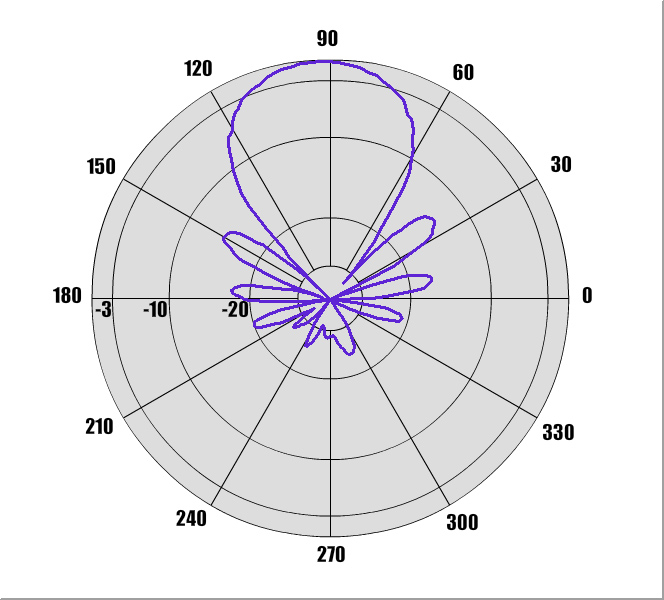

H-plane pattern
