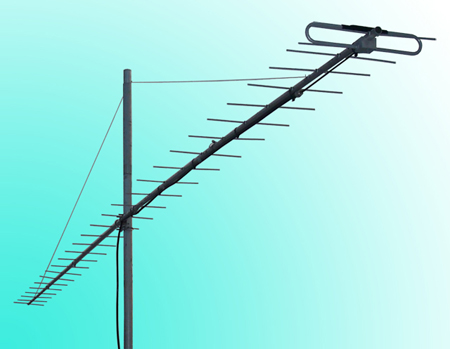

430-440 MHz. HAM directional antenna Y29-70cm
430-440 MHz. HAM directional antenna Y29-70cm
Electrical specifications
Model Y29-70cm
Operating Frequency band, MHz 430-440
Frequency bandwidth, MHz 10
VSWR, not more than 1.5
Gain,dBi 17
Impedance, Ohm 50
Max. Power input, W 300
Lightning protection DC grounded
E-plane sector -3dB 180
H-plane sector -3dB 190
Mechanical specifications
Model Y29-70cm
Mast diametr, mm KP-65
Construction material aluminum
Connector N-female
Dimentions, mm 7460x350x100

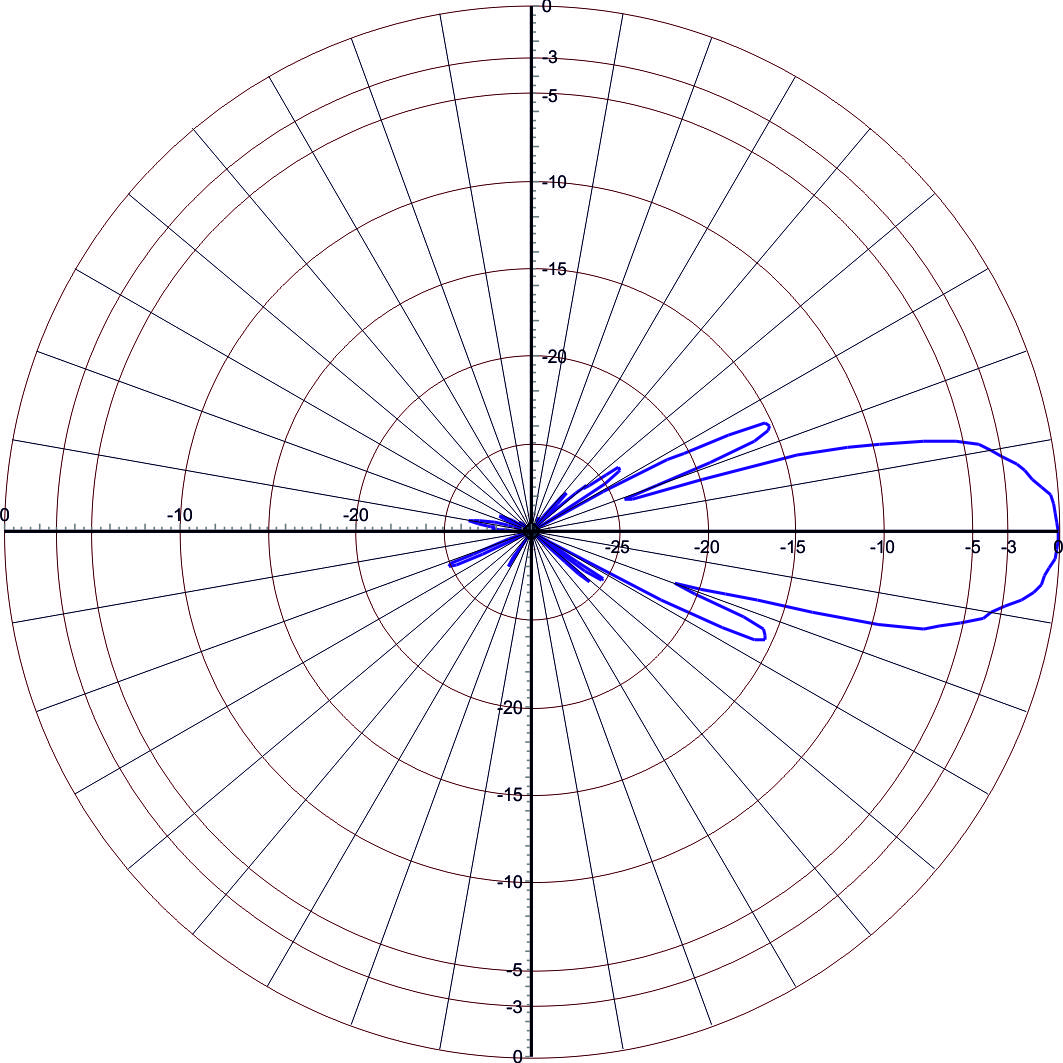

E-plane pattern

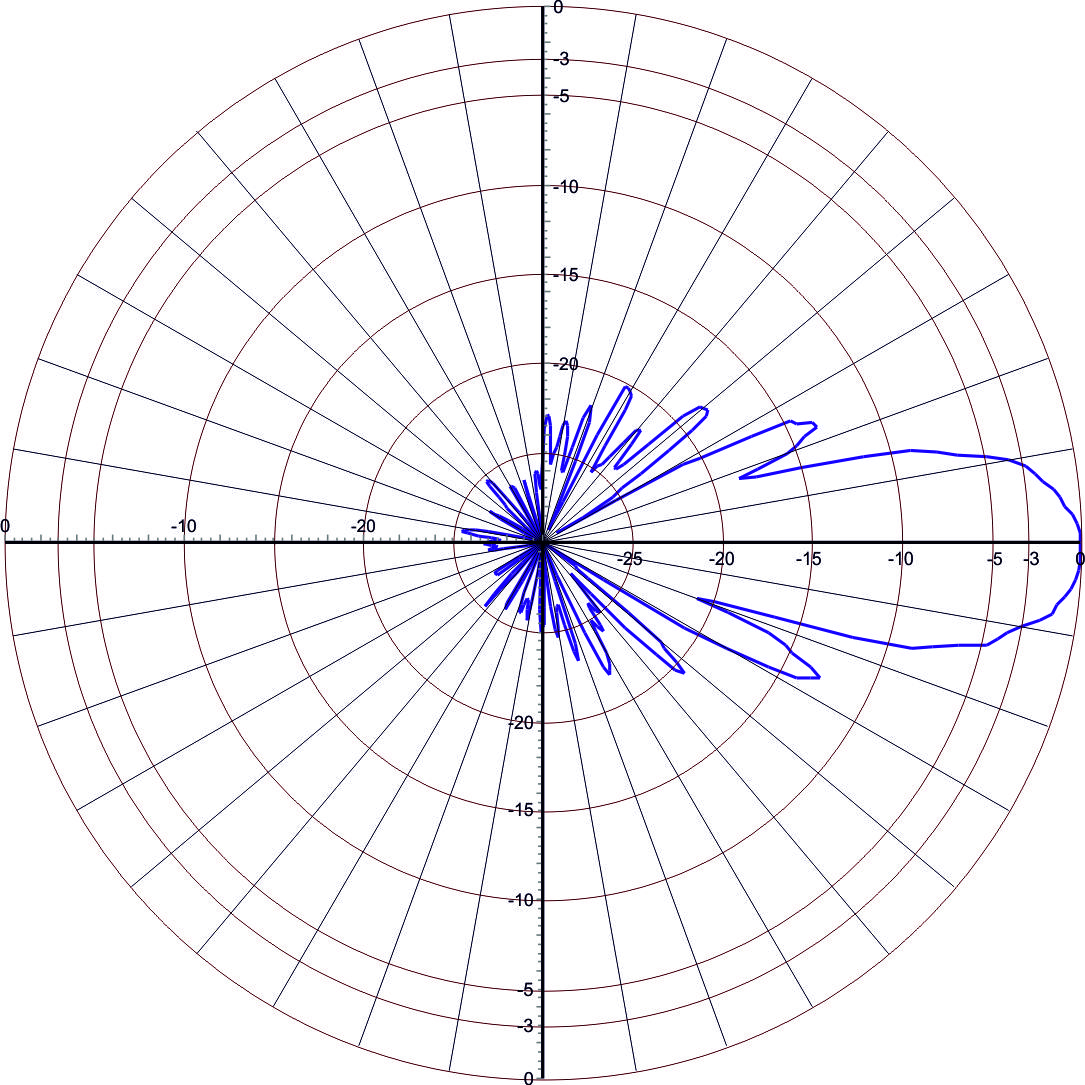

H-plane pattern
