| | Electrical specifications
| Model |
D2040
|
| Operating frequency band, MHz |
7,0-7,2 / 14,0-14,35
|
| VSWR, not more than |
1.5
|
| Impedance, Ohm |
50
|
| Max. power input, W |
100
|
| Polarization |
horizontal
|
| * The antenna power capacity is defined by the duration of transmission, type of transmission, its frequency, SWR and the ambient temperature.
|
|
|
Mechanical specifications
| Model |
D2040
|
| Weight, kg |
0.46
|
| Height/Length, M |
36
|
| Material of radiator |
Copper, PVC insulated
|
| Connector |
SO-239
|
| |

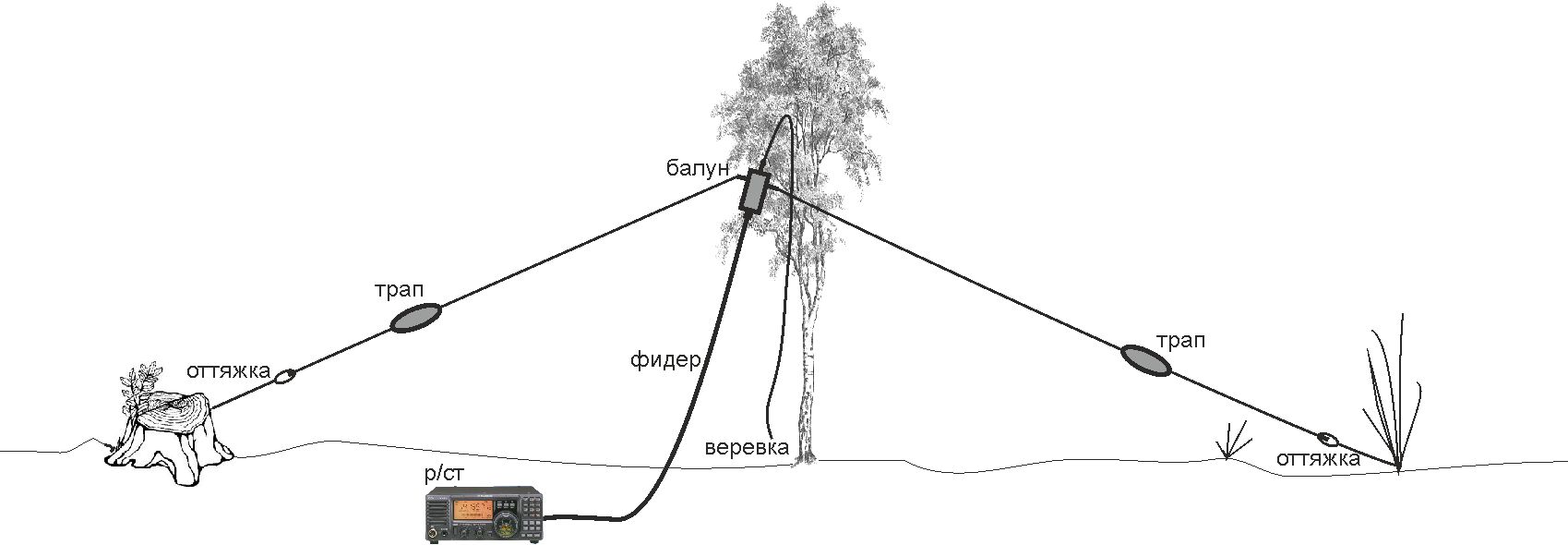

D2040 schem

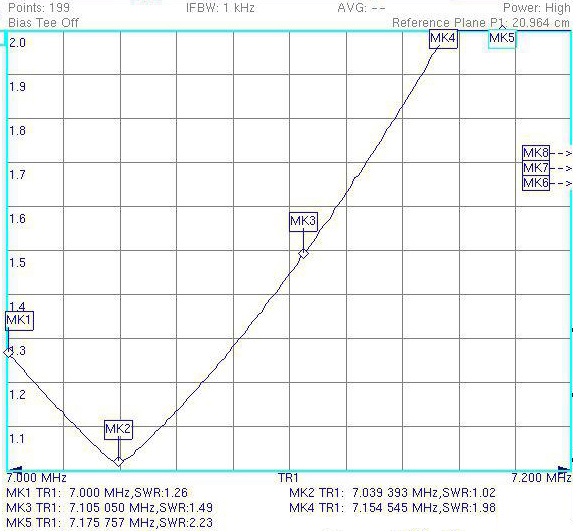

40 m
|

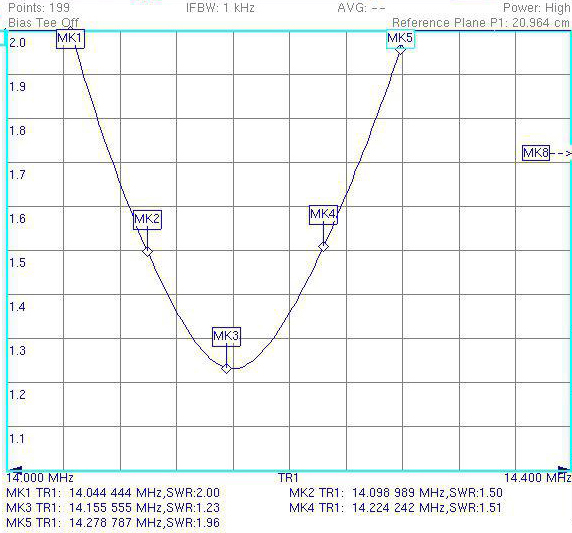

20 m
|
| |
|
 |
