| Electrical specifications
| Model |
DR1-VHF
|
| Operating frequency band, MHz |
136 - 174
|
| VSWR, not more than |
1,5
|
| OFFSET, dBi |
5.8
|
| Sector in vertical plane , -3dB |
70°
|
| Impedance, Ohm |
50
|
| Max. power input, W |
400
|
Mechanical specifications
| Model |
DR1-VHF
|
| Weight, kg |
1,2
|
| Height/Length, M |
1.1
|
| Construction material |
Aluminium alloy
|
| Mast diametr, mm |
38-65
|
| Rated wind velocity, m/s |
45
|
| Load of side wind 45 m/s, H |
51
|
| Temperature range, °C |
from -50 to +50
|
| Connector |
N-female
|
| |

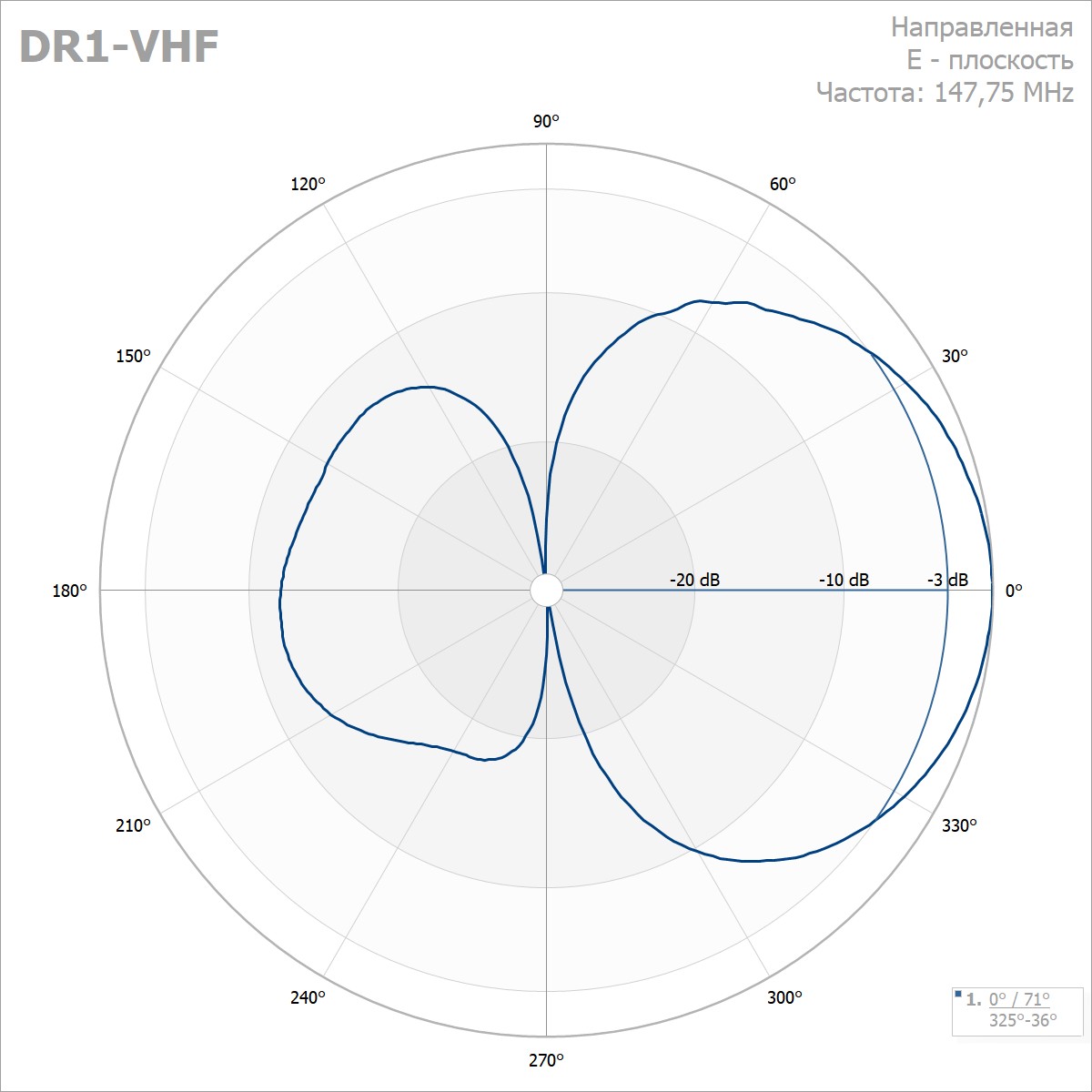

DR1 VHF E-plane pattern

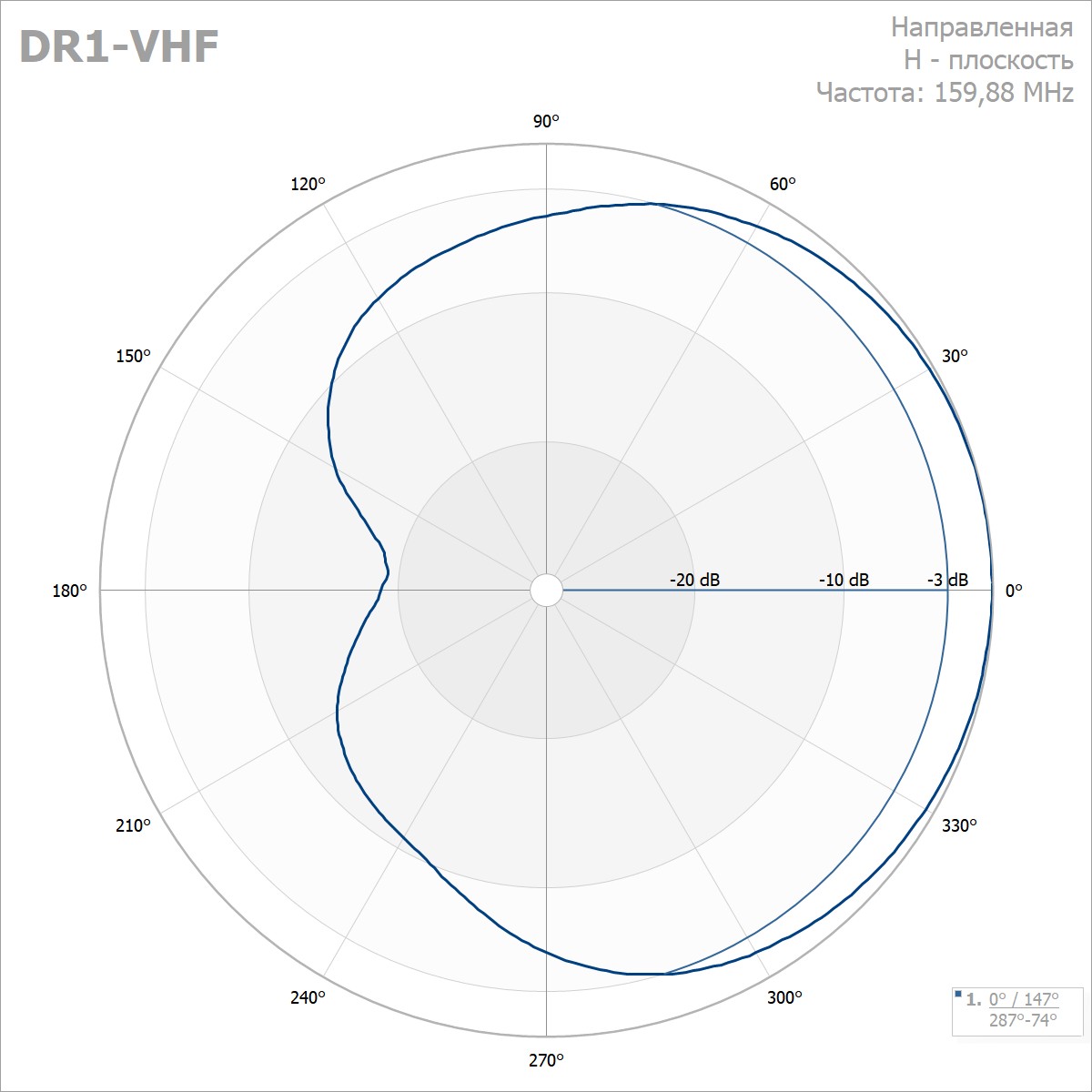

DR1 VHF H-plane pattern

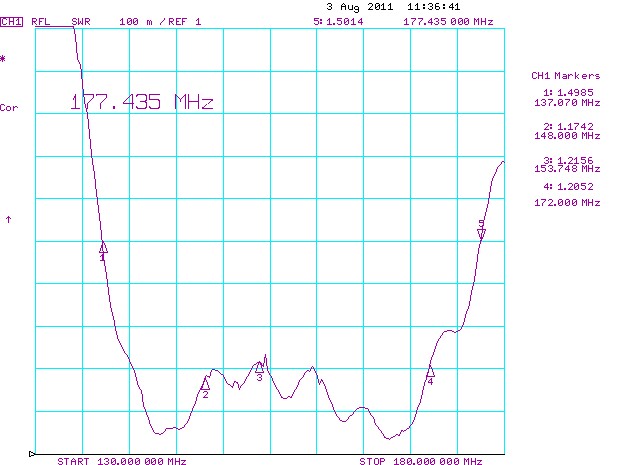

VSWR diagram, DR1 VHF
| |
|
 |
