| | Electrical specifications
| Model |
CW4015
|
| 40 m, VSWR not more 2 |
7,0-7,150 MHz
|
| 20 m, VSWR not more 1,5 |
14,0-14,35 MHz
|
| 15 m, VSWR not more 2 |
21,0-21,450 MHz
|
| 10 m, VSWR not more 3.8 |
28,0-29,0 MHz
|
| Impedance, Ohm |
50
|
| Connector |
PL-259
|
| Max. power input CITY-Windom, W* |
100 (PEP)
|
| Length, m |
24,5
|
| Weight, kg |
1,05
|
| Polarization |
horizontal
|
| Material of radiator |
steel brass wire, PVC insulated
|
| * The antenna power capacity is defined by the duration of transmission, type of transmission, its frequency, SWR and the ambient temperature.
|
|
|
| |

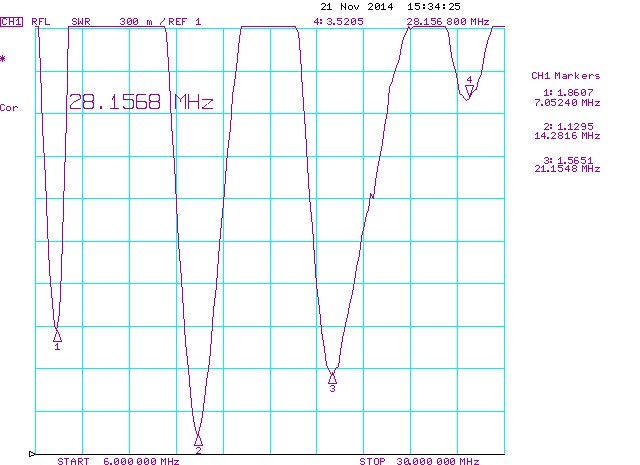

SWR CW4015
| |
|
 |
