| | Electrical specifications
| Model |
GB-UH-100
|
| Operating frequency band, MHz |
440-470
|
| Insertion loss, dB |
3.3
|
| Impedance, Ohm |
50
|
| Attenuation |
see fig.
|
| VSWR, not more than |
1.2
|
| Input power, W |
125
|
| IsolationTX-TX not worse, dB |
20
|
|
|
Mechanical specifications
| Model |
GB-UH-100
|
| Dimensions, mm (unit) |
(4U)178x485x130
|
| Weight, kg |
2.8
|
| Temperature Range, °C |
-30 to +50
|
| Connector |
N-female
|
| |

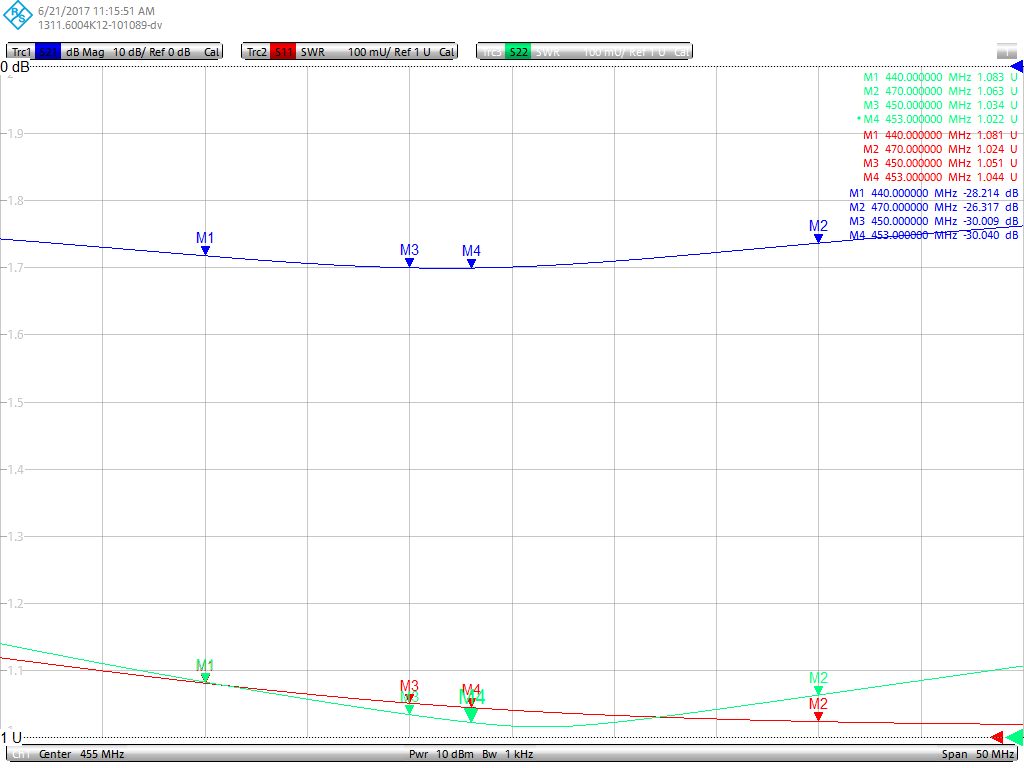

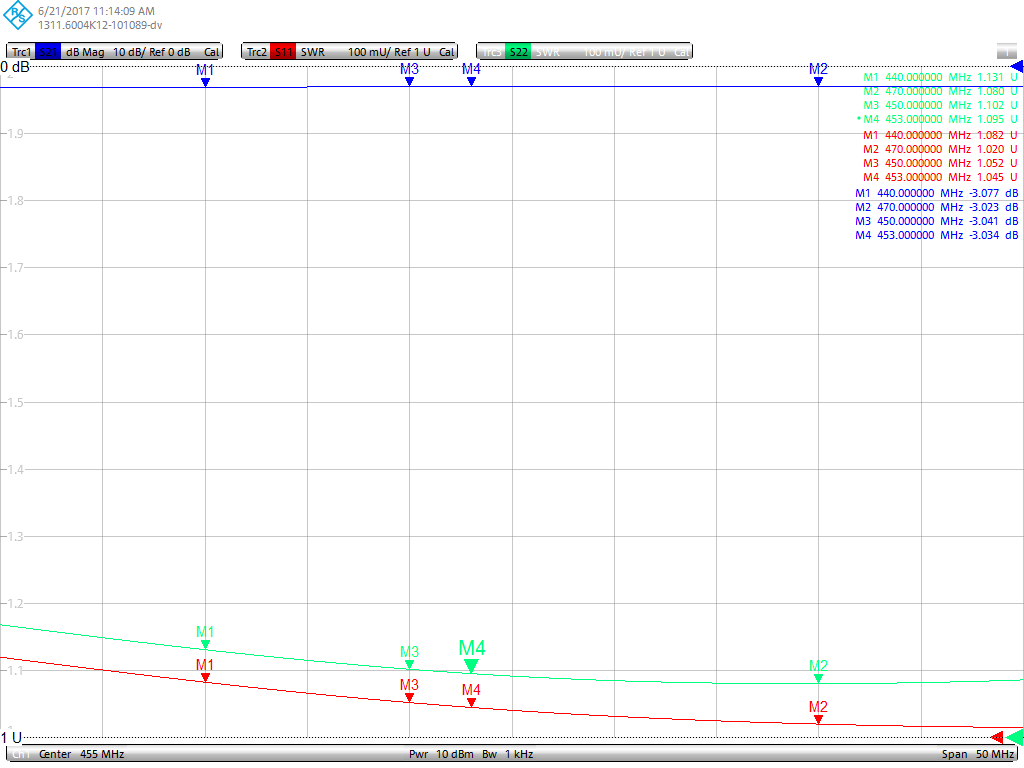

Typical gain-frequency characteristics GB-UH-100
| |
|
 |
