| Electrical specifications
| Model |
CL8-2(3)HOFM-2
|
| Operating frequency band, MHz |
87.5-108
|
| Insertion loss @ min. space, dB |
0.5
|
| Min. space TX/TX, kHz |
600
|
| Impedance, Ohm |
50
|
| Isolation TX-TX not less, dB |
30
|
| VSWR, not more than |
1.2
|
| Input power per cannel, W |
1500
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
Mechanical specifications
| Model |
CL8-2(3)HOFM-2
|
| Diameter of cavity, mm (ins.) |
200 (8")
|
| Weight, kg |
62
|
| Connector in |
7/16 DIN
|
| Connector out |
7/8 EIA
|
| |

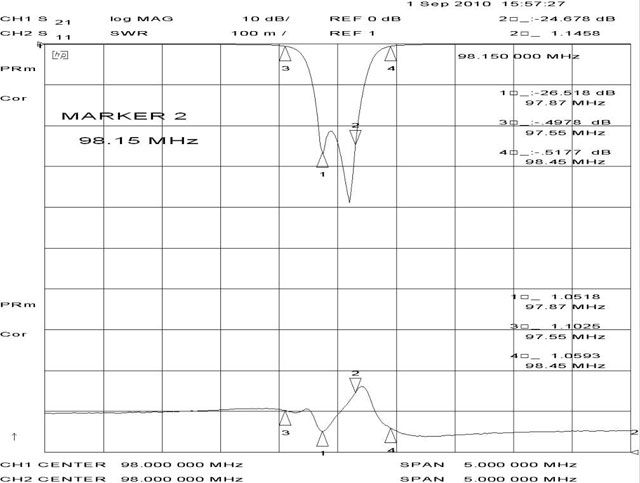

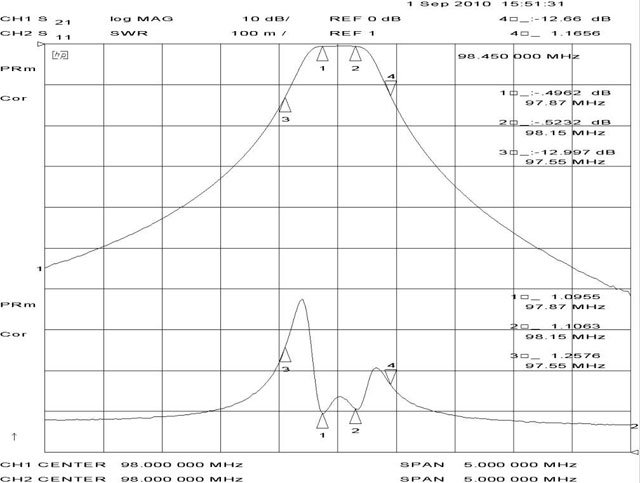

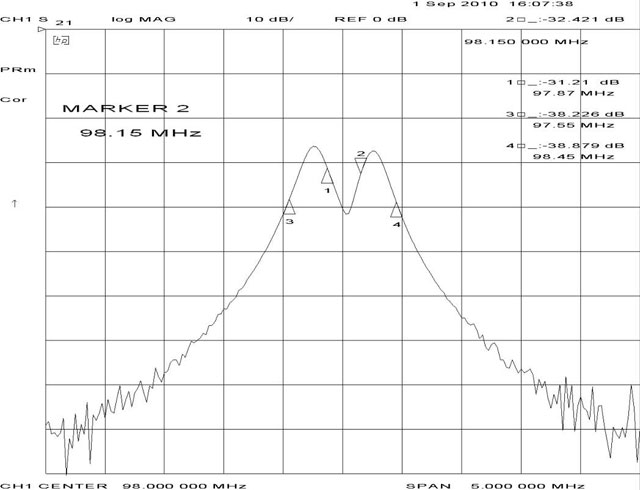

Typical characteristics CL8-2(3)HOFM-2
| |
|
 |
