| | Electrical specifications
| Model |
CL10-2(3)HOFM-1
|
| Operating frequency band, MHz |
87.5-108
|
| Insertion loss @ min. space, dB |
0,6
|
| Min. space TX/TX, MHz |
0,6
|
| Impedance in, Ohm |
50
|
| Impedance out, Ohm |
50
|
| Isolation TX-TX not less, dB |
30
|
| VSWR, not more than |
1,2
|
| Input power per cannel, W not more |
1000
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
CL10-2(3)HOFM-1
|
| Diameter of cavity, mm (ins.) |
254 (10")
|
| Weight, kg |
104.5
|
| Connector in |
7/16 DIN female
|
| Connector out |
7/16 DIN female
|
| Demensions, mm |
1035x1072x1400
|
| |

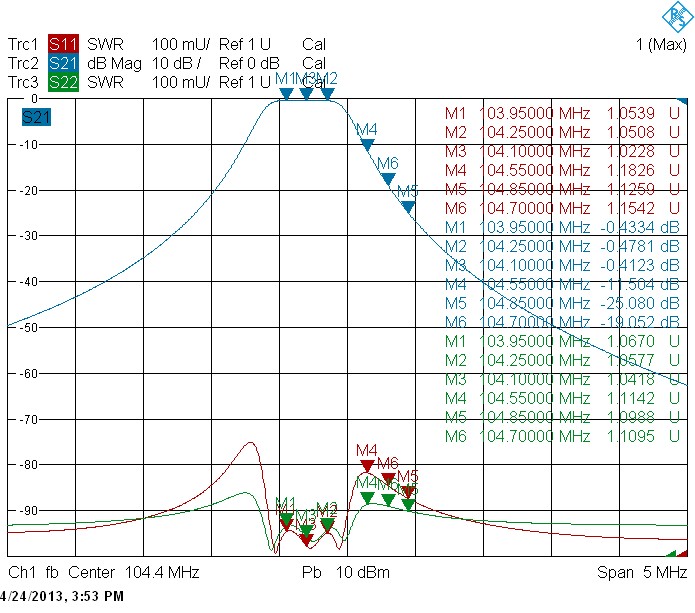

Narrowband input-Out
|

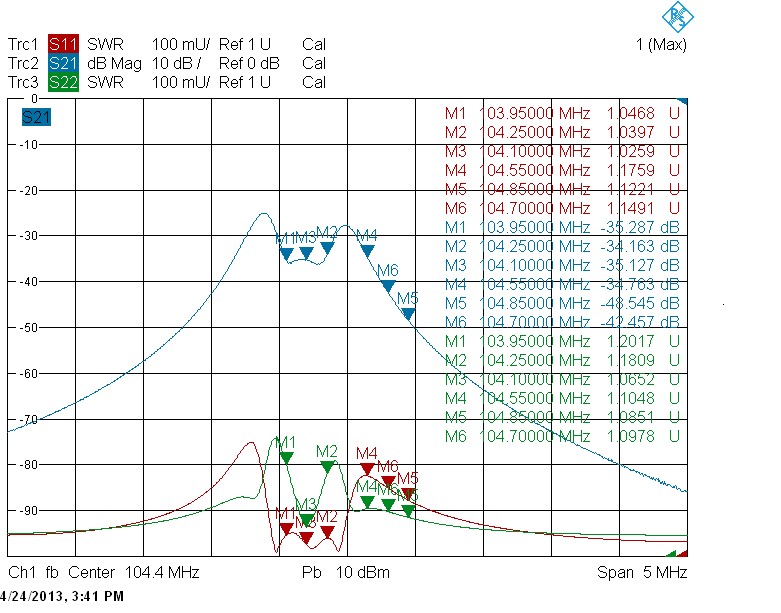

Wideband input-Out
|

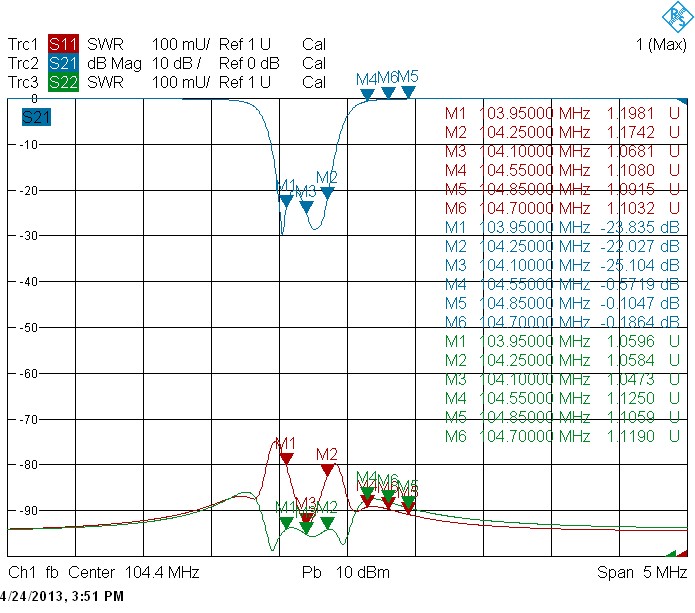

Wideband input-Narrowband input
|
| |
|
 |
