| | Electrical specifications
| Model |
CL10-2(3)FM-5
|
| Operating frequency band, MHz |
87,5-108
|
| Insertion loss @ min. space, dB |
0,6
|
| Min. space TX/TX, MHz |
1
|
| Impedance, Ohm |
50
|
| Isolation TX-TX not less, dB |
30
|
| VSWR @BP=300 kHz |
1,2
|
| Input power, W not more |
5000
|
| Temperature range, °C |
from -30 to +60
|
| Cavity electrical length |
1/4λ
|
|
|
Mechanical specifications
| Model |
CL10-2(3)FM-5
|
| Cavity size, mm (ins.) |
254 (10")
|
| Weight, kg |
88
|
| Connector in |
7/16DIN
|
| Connector out |
7/8EIA
|
| |

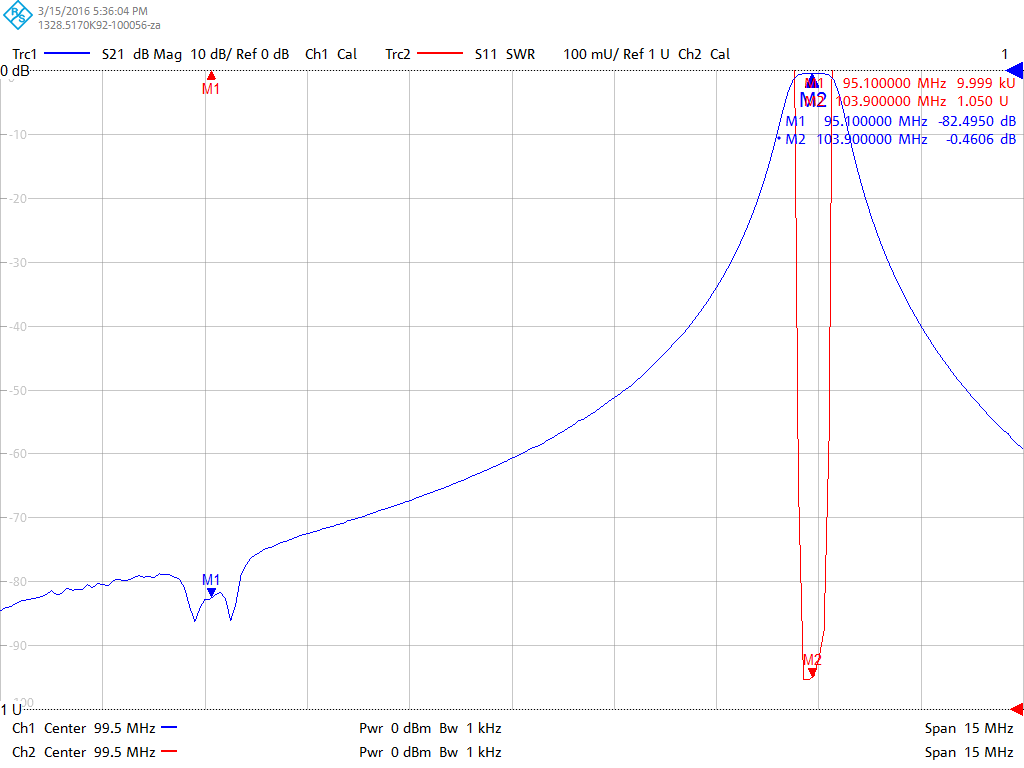

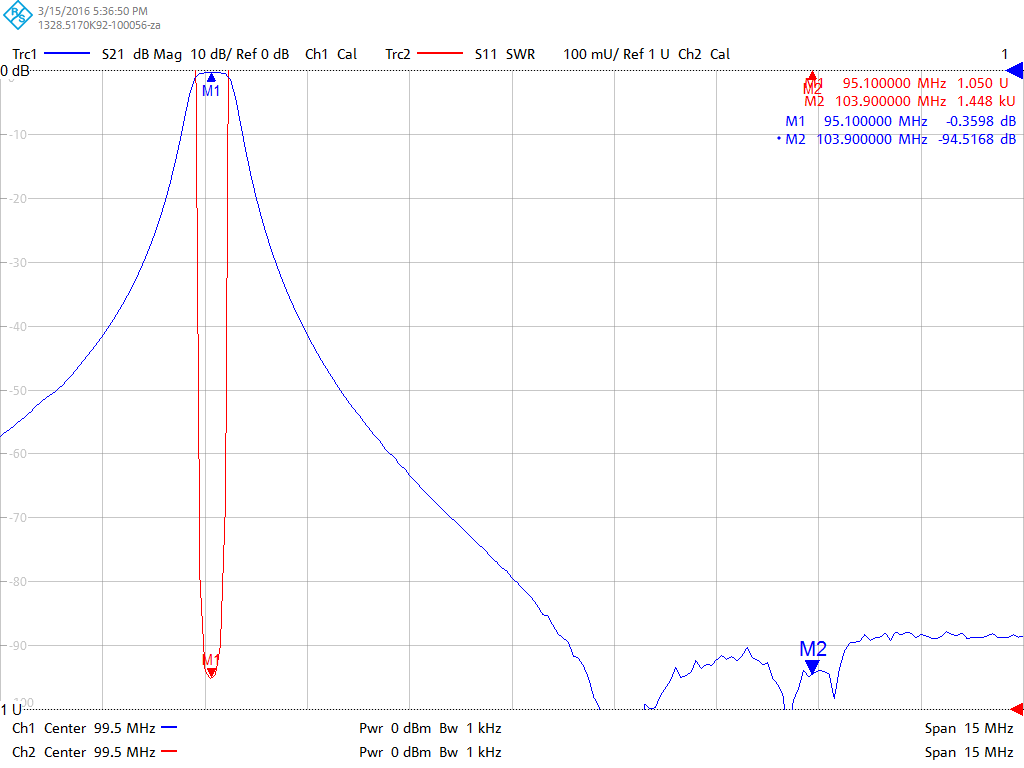

Typical characteristic CL10-2(3)FM-5 |
|
|  |
|
|
|
