| | Electrical specifications
| Model |
CHM-2V-50D
|
| Operating Frequency band, MHz |
150-170
|
| Number of channels |
2
|
| RF ports impedance, Ω |
50
|
| Insertion loss TX-ANT, dB |
4
|
| Minimum channel spacing TX/TX, MHz |
0-20
|
| Isolation, dB |
>75
|
| Typical Isolation, dB |
85
|
| Maximum RF Input Power per channel, W |
50
|
| VSWR, not more than |
1,3
|
|
|
Mechanical specifications
| Model |
CHM-2V-50D
|
| Weight, kg |
1,62
|
| Dimensions (LxWxH), mm |
485x250x44
|
| RF Input/Output connectors |
N-female
|
| Operating Temp Range |
from +5 to +35
|
| Mounting of unit |
Front mounting, 19” rack / 1 U
|
| |

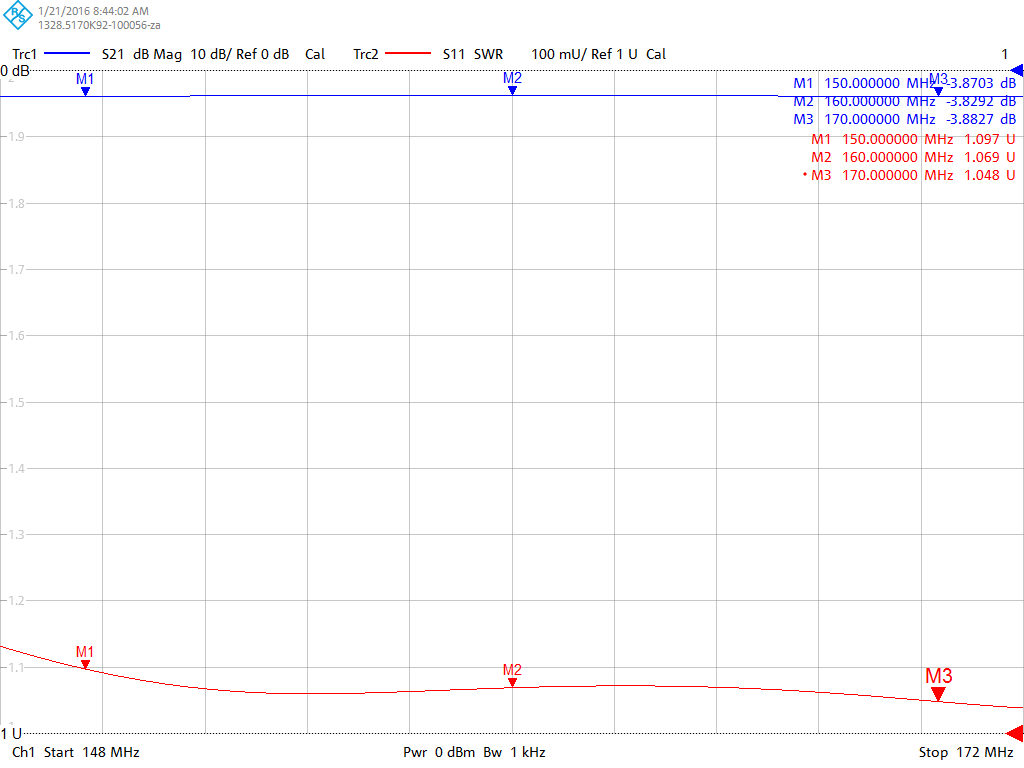

ANT-TX Insertion Loss
|

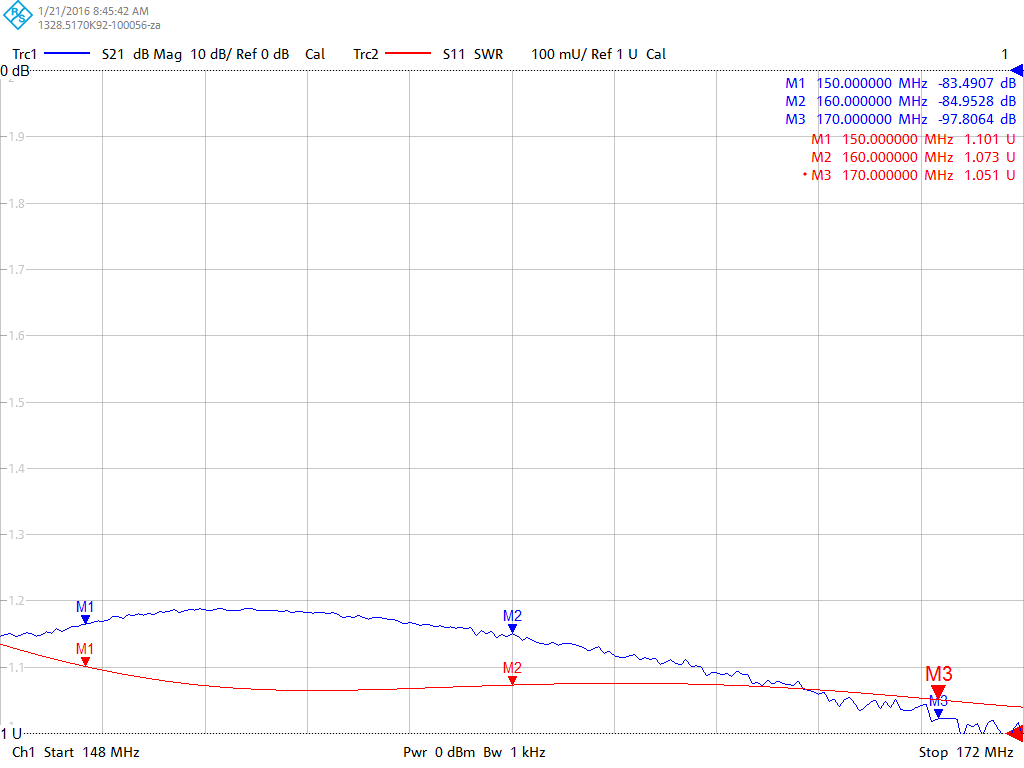

TX1-TX2 Isolation
|
| |
|
 |
