 | Electrical specifications
| Model |
A10-868 |
A10-868-T5
|
| Operating frequency band, MHz |
864-876 |
864-876
|
| Gain,dBi |
10 |
10
|
| VSWR, not more than |
1.5 |
1.5
|
| Polarization |
|
vertical
|
| Max. power input, W |
50 |
50
|
| H-plane beamwidth |
360° |
360°
|
| E-plane beamwidth |
15° |
15°
|
| Impedance, Ohm |
50 |
50
|
| Electrical down tilt |
1-2° |
5°
|
Mechanical specifications
| Model |
A10-868 |
A10-868-T
|
| Length, mm |
1570 |
1570
|
| Weight, kg |
0.75 |
0.75
|
| Rated wind velocity, m/s |
40 |
40
|
| Diameter of radome, mm |
30 |
30
|
| Radome |
white fiberglass |
white fiberglass
|
| Mounting |
|
On a mast 35-70 mm
|
| Connector |
N-female |
N-female
|
| |
This antenna is designed specially for application together with radio modems in systems of data transmission. It provides high gain of signals on receive and transmit.
Omnidirectional radiation allows to use in systems "point - multipoint".
The antenna has high reliability and is applied in any weather conditions.
Low power of radio modems is compensated by the high-quality matching and high gain of antenna.

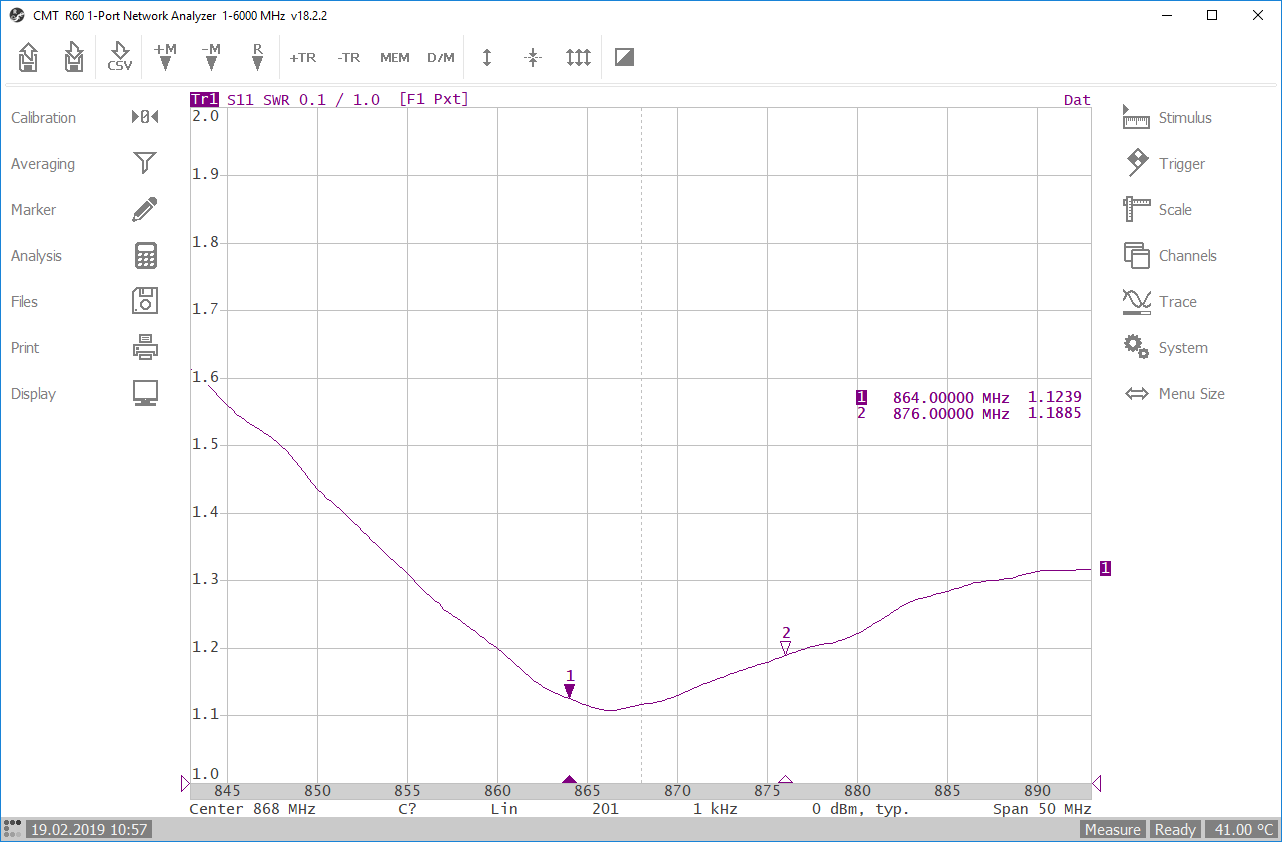

VSWR diagram, A10-868

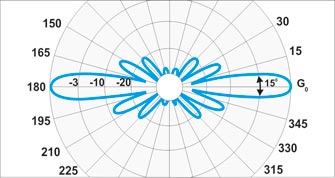

A10-868 E-plane pattern
VSWR diagram,A10-868-T5

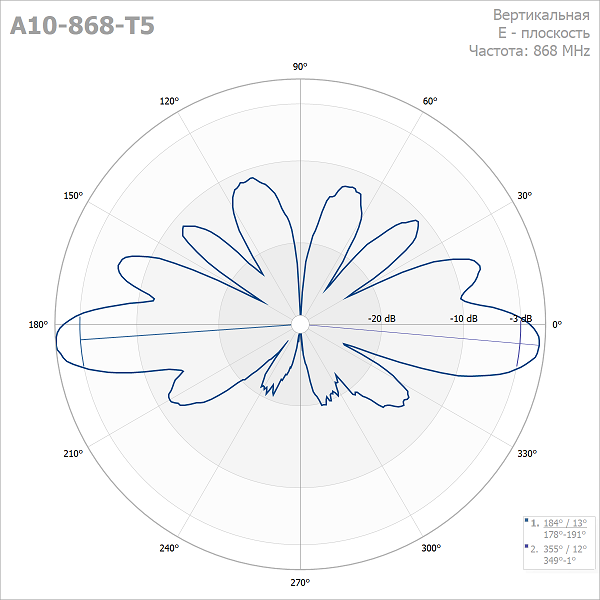

A10-868-T5 E-plane pattern
| |
|
 |
