3G antenna 1920 – 2170 MHz

3G antenna 1920 – 2170 MHz
Electrical specifications
Model SU-10-3G
Operating frequency band, MHz 1920 – 2170
Gain,dBi 11
VSWR, not more than 1.5
Polarization vertical
Max. power input, W 40
Sector in H-plane (-3 dB) 35°
Sector in E-plane (-3 dB) 48°
Impedance, Ohm 50
Mechanical specifications
Model SU-10-3G
Dimensions (LxWxH), mm 45x45x205
Weight, kg 0.5
Rated wind velocity, m/s 40
Radiator copper
Radome PE
Mounting on a metal surface
Connector N-female

SU-10-3G Е-plane pattern

SU-10-3G H-plane pattern

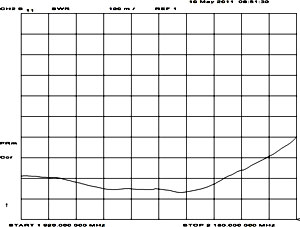

VSWR diagram SU-10-3G
